Solar dc fuses is primarily used to protect the system wiring from getting too hot and catching fire. Secondly, it’s also used to protect devices from catching fire or from becoming more seriously damaged if there is a short circuit.

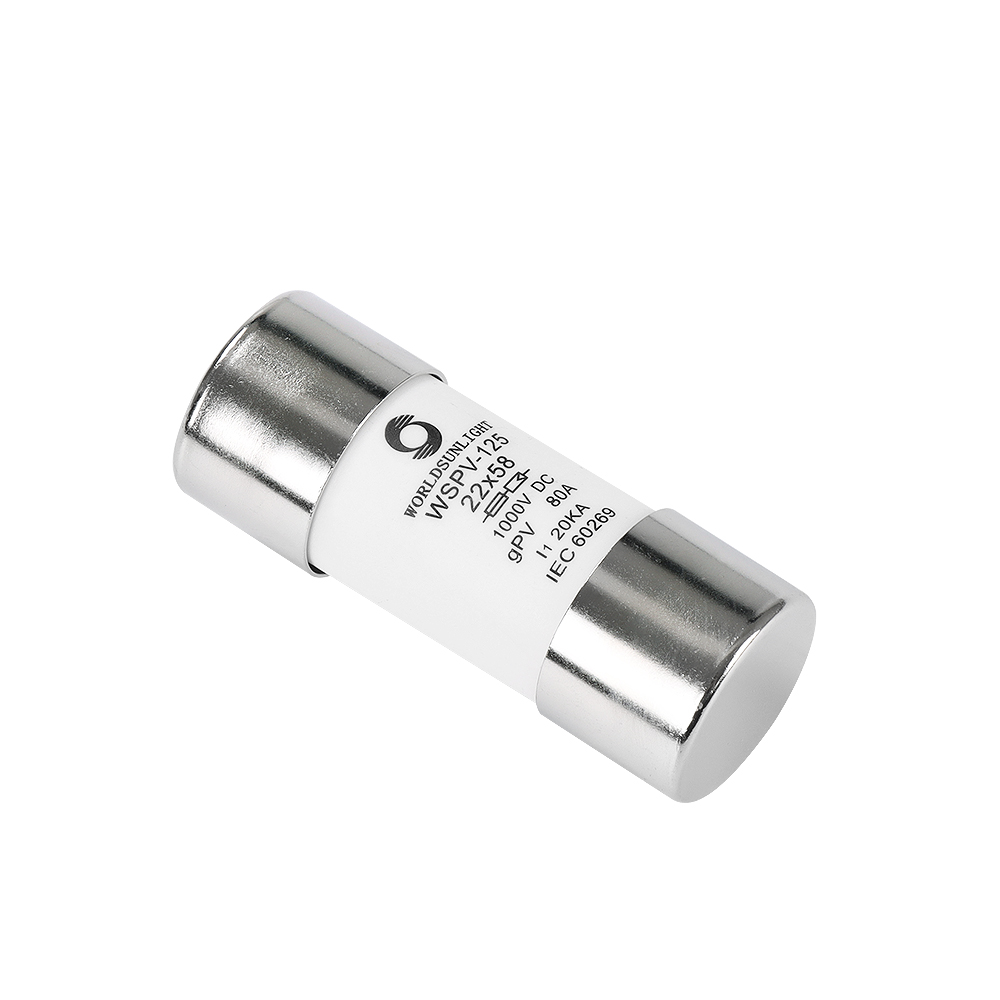

22*58mm fuse
Model number:WSPV-125
Fuse size:22*58mm
Rated current:63A 80A 125A
Standard:IEC/EN60269
Rated voltage:1000VDC
Biggest Block Ability:20kA
Working Temperature:"-5" to "+40"
Protection Degree:IP20
Installation:35MM DIN RAIL
Installation Altitude:≤2000M
