A range of 10x38mm fuse links specifically designed for protecting photovoltaic strings. These fuse links are capable of interrupting low overcurrents associated with faulted photovoltaic string arrays (reverse current, multi-array fault).
According to IEC60269-1
Rated current: 1-32A R
ated voltage: DC 1000V
Rated breaking capacity:DC 20KA
Operating class gPV for Solar protection
DC FUSE Tech Parameter:
|
Item |

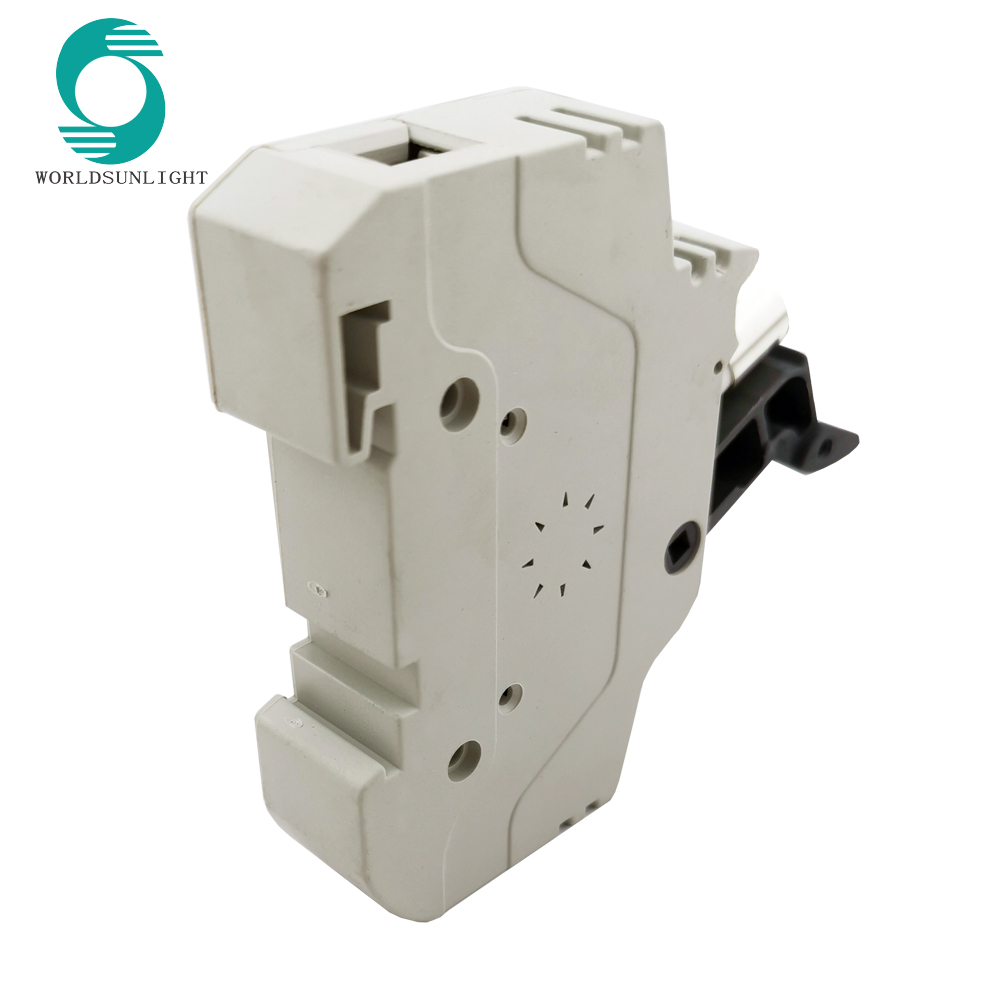

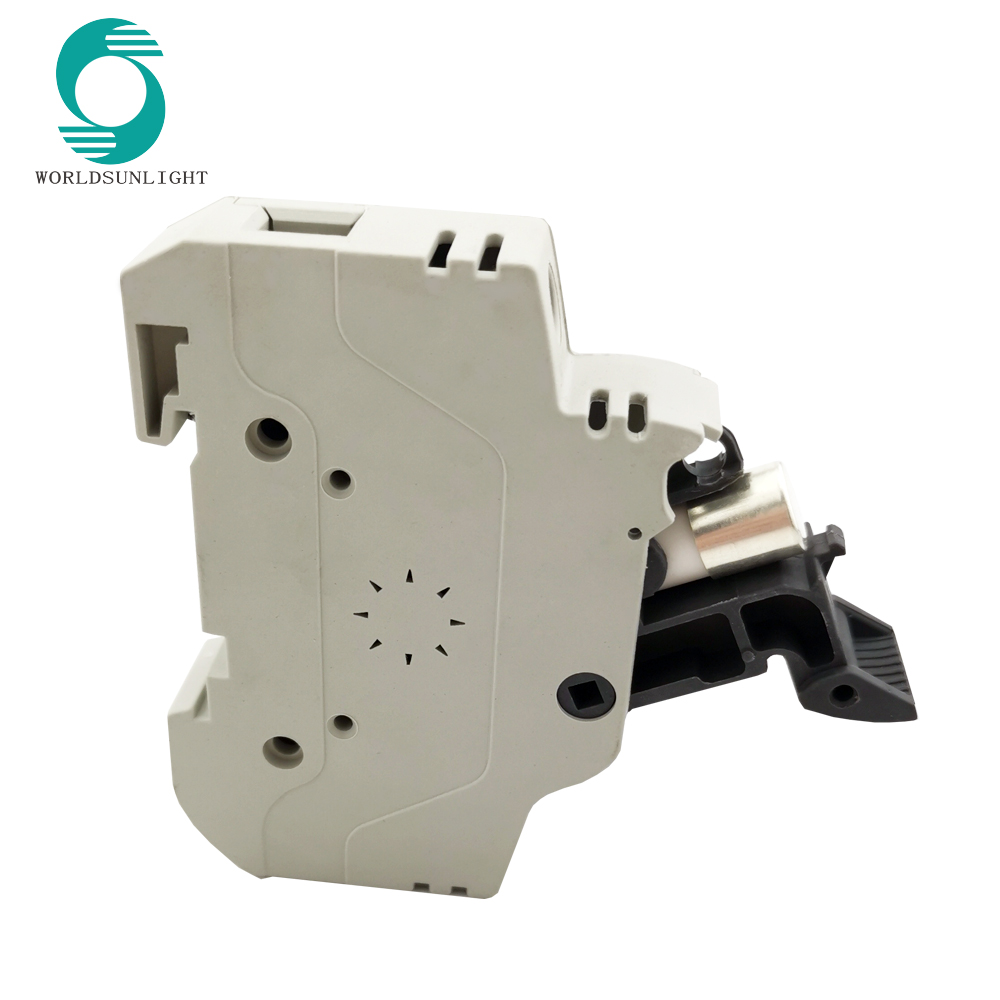

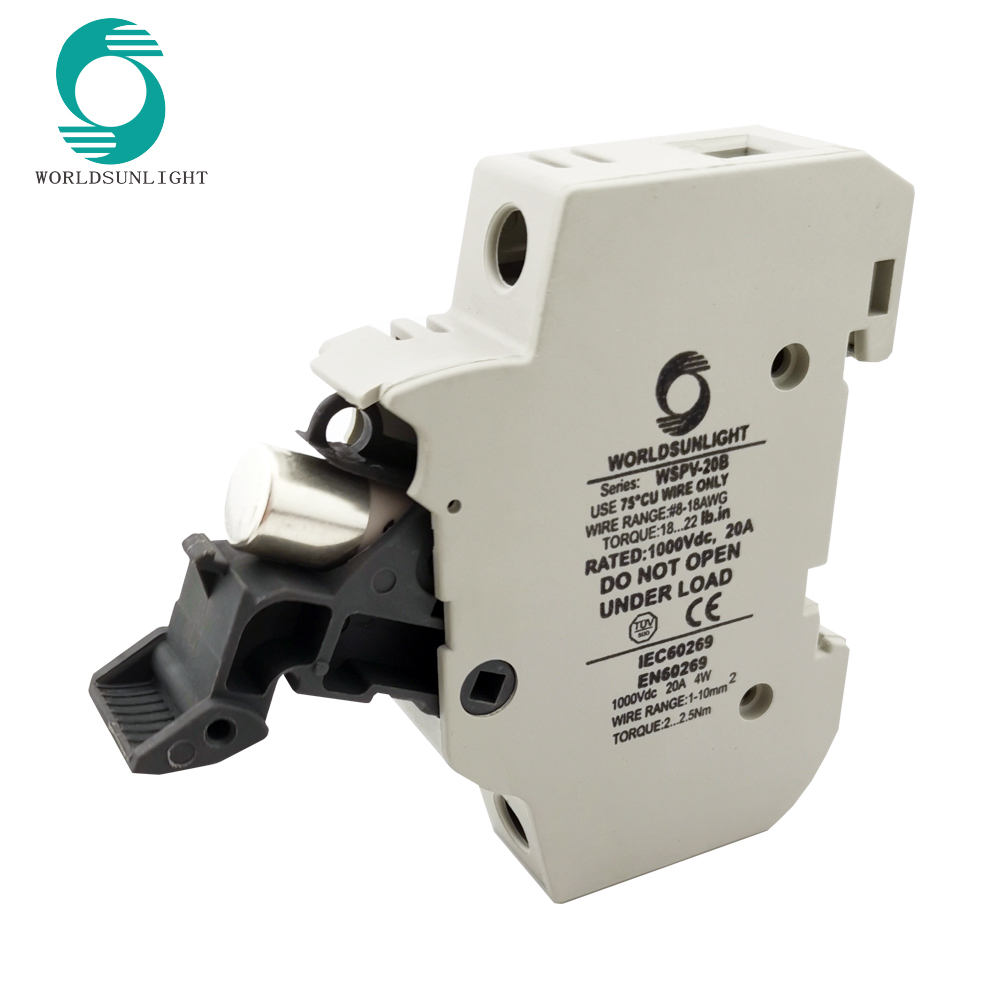

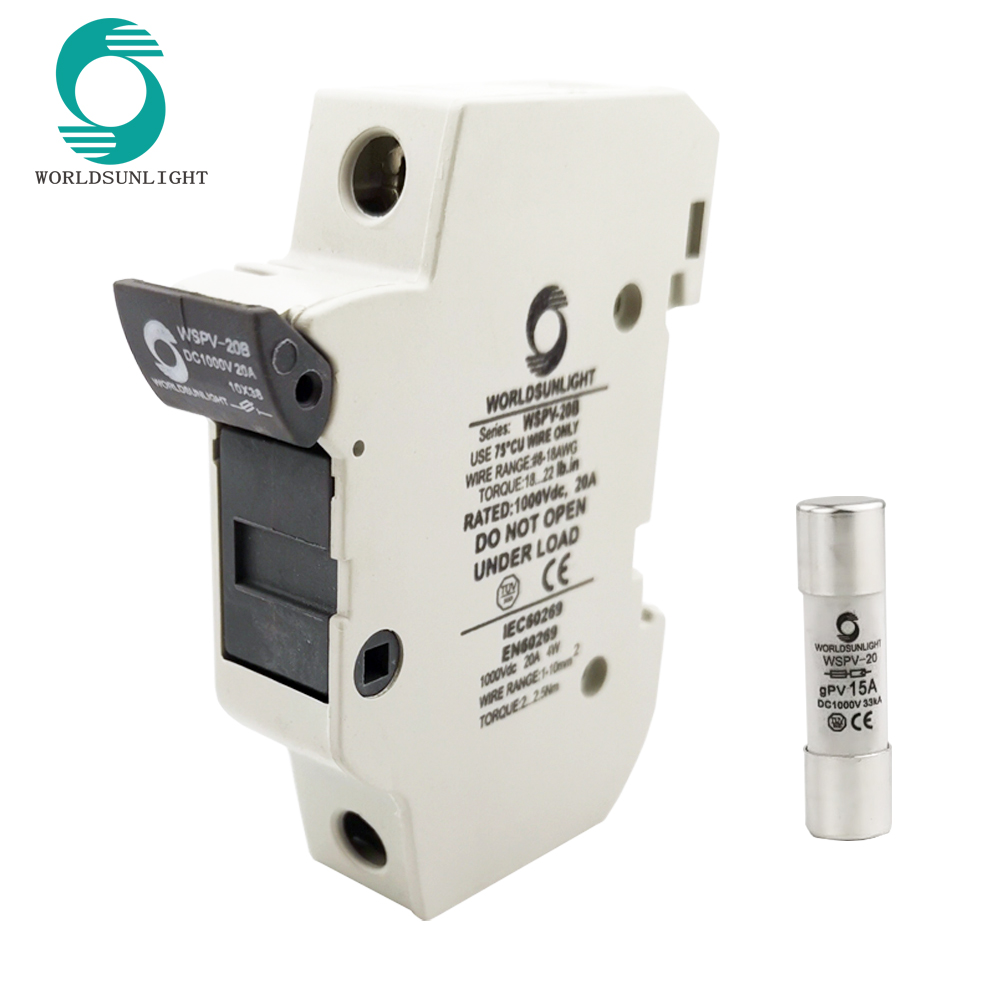

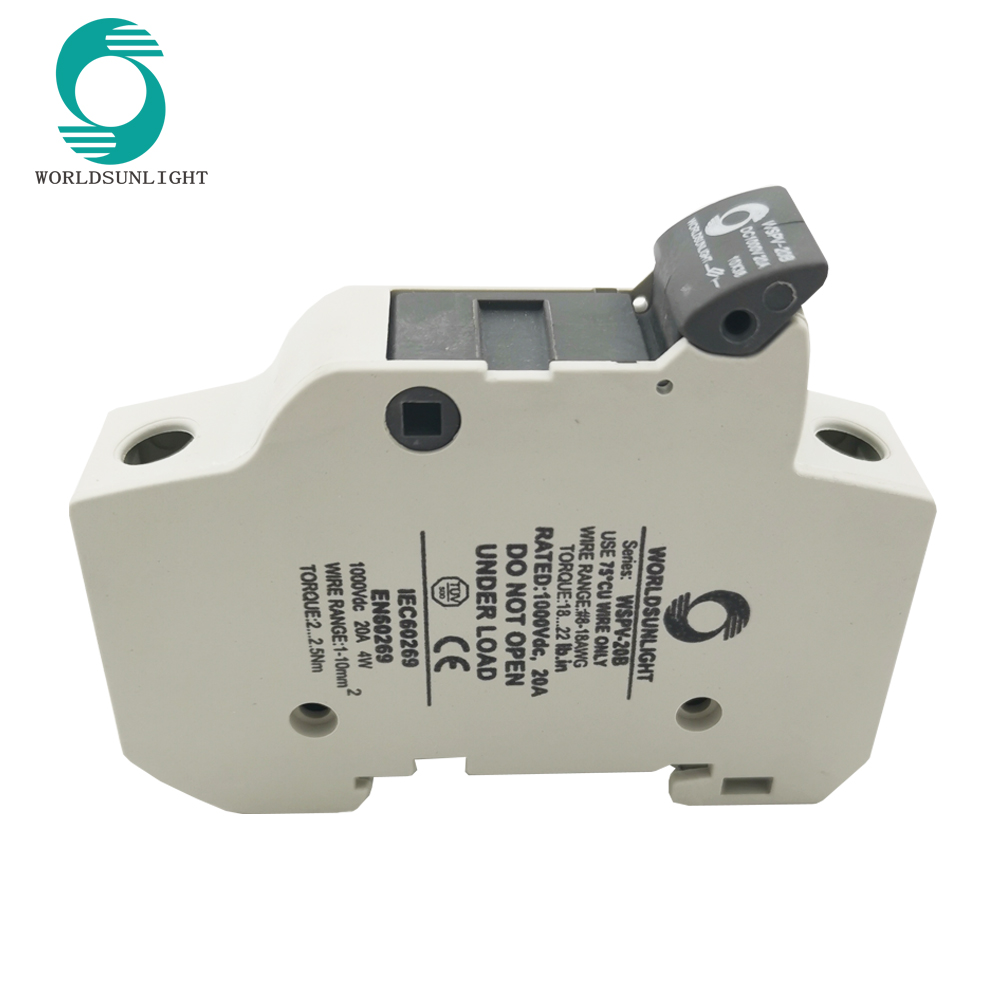

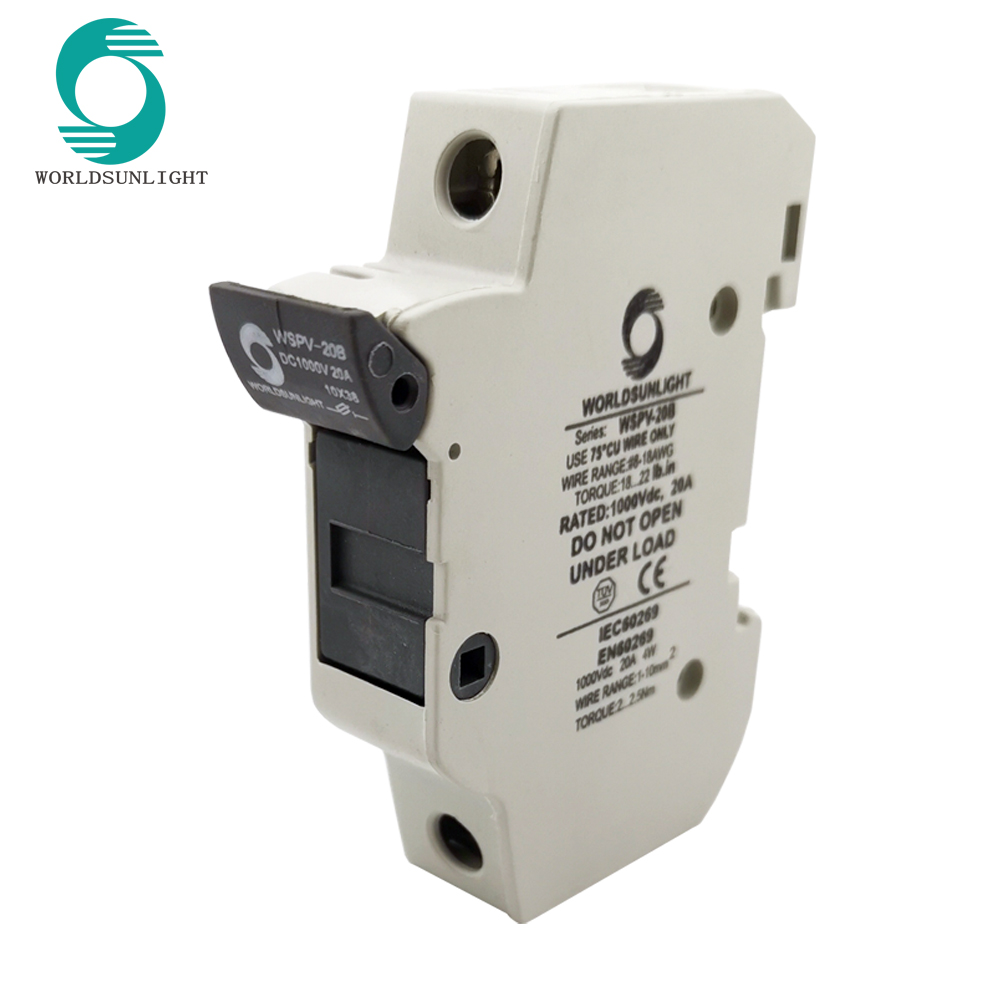

DC Fuse with fuse holder |
|
Model Number |
WSPV-20 |
|
Pole |
1P |
|
Rated Current(In) |
1,2,3,4,5,6,8,10,12,15,20,25,32 |
|
Biggest Block Ability(KA) |
20 |
|
The Most High Power Consumption(W) |
3.5 |
|
Connection(mm2) |
2 .5 -1 0 |
|
Working Temperature(℃ ) |
-30~+70 |
|
Resistance And Damp Hot |
Class 2 |
|
Altitude(m) |
≤ 2000 |
|
Relative Humidity |
≤ 95% |
|
Protection Class/Degree |
IP20 |
|
Pollution |
3 |
|
Installation Environment |
No obvious shock and vibration |
|
Installation Class/Type |
Class III/DIN rail |
|
Fuse Size |
10x38 |
