The product conforms to IEC60947-2 standard. Reliable protection at high ambient temperatures. Loadable: string protection up to 400A. Tasted:Ultimate short circuit breaking capacity lcu of 25kA according to IEC 60947-2
The product conforms to IEC60947-2 standard.
Reliable protection at high ambient temperatures
Loadable: string protection up to 400A
Tasted:Ultimate short circuit breaking capacity lcu of 25kA according to IEC 60947-2
Fast: reclosable for minmum standstill times
Safe: reliable disconnector properties, switching under load
Approval: Provided on request

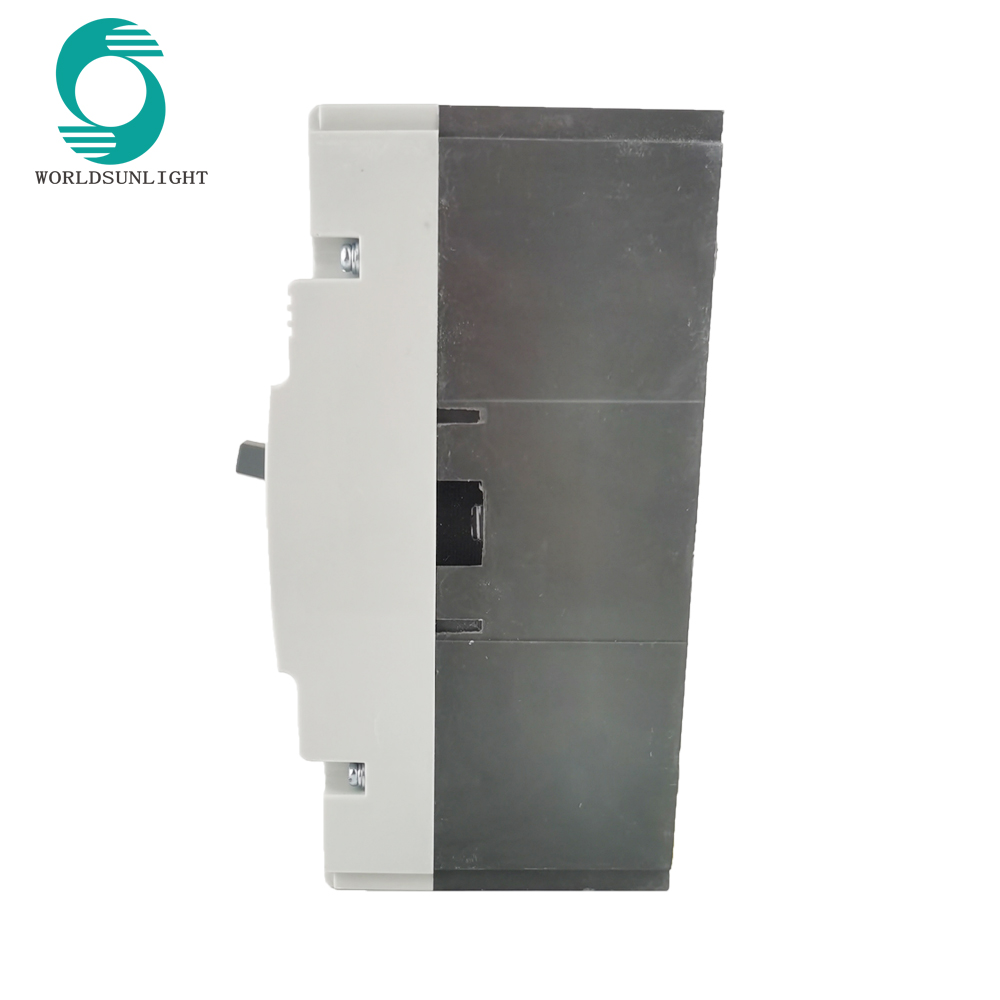

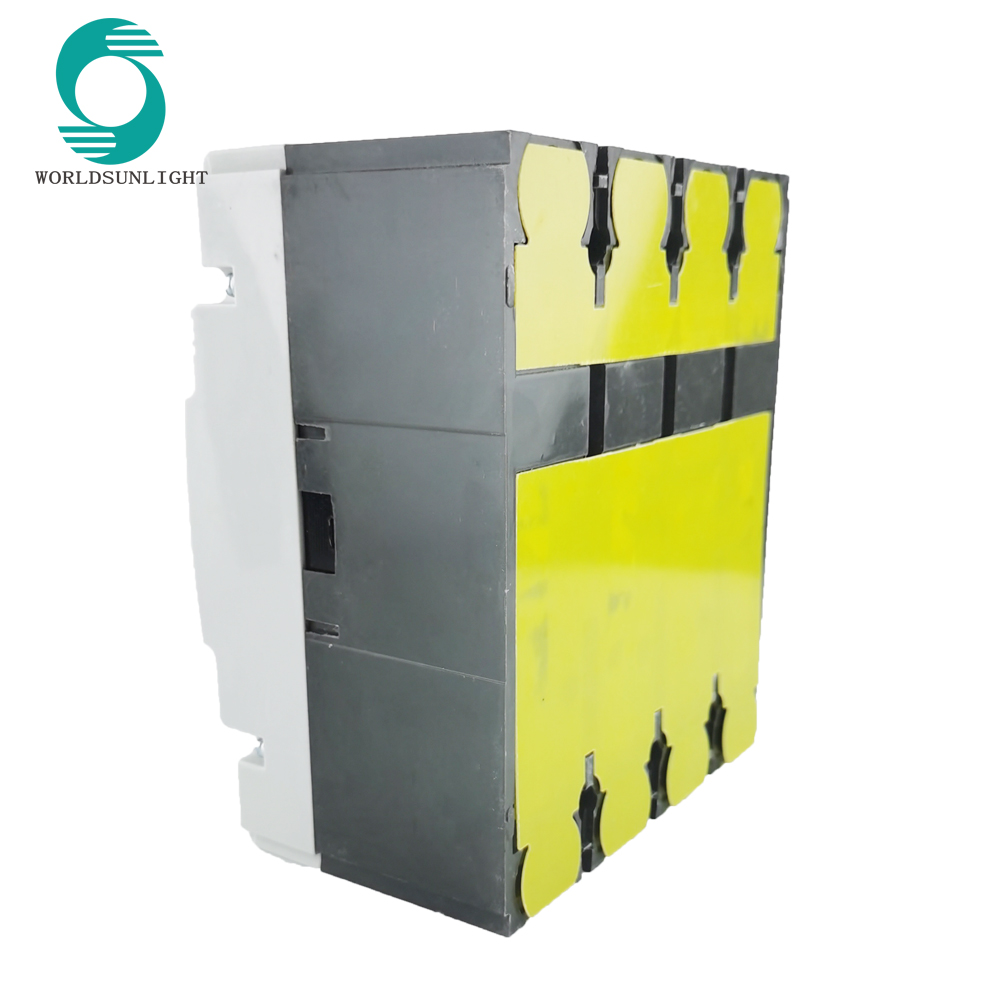

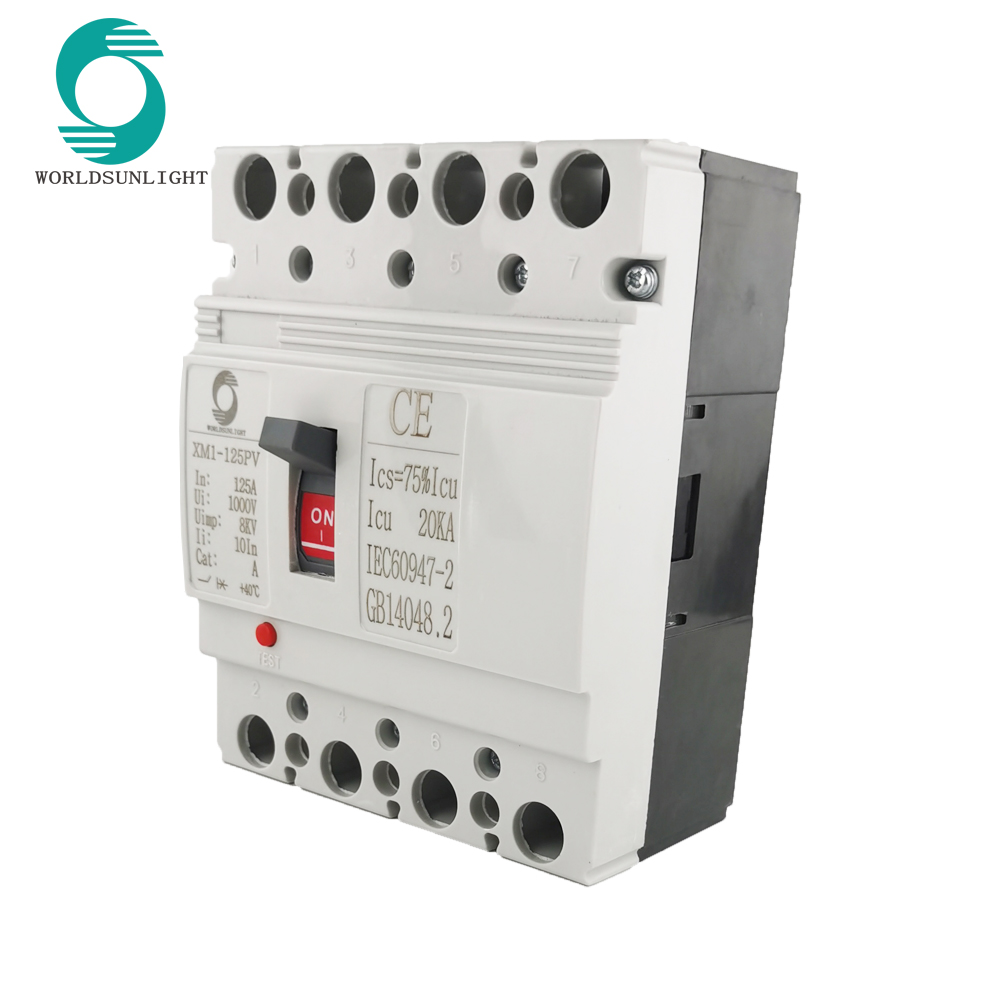

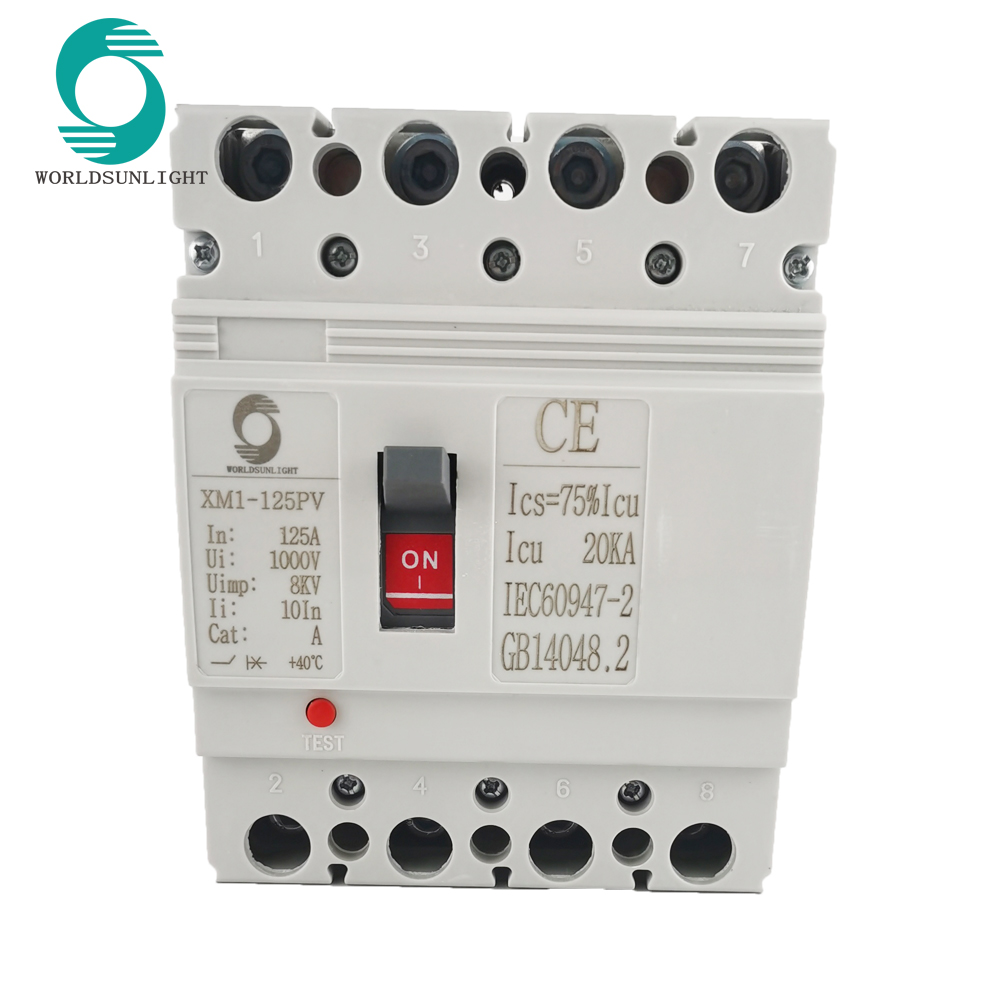

XM1-PV series moulded case circuit breaker is a new type product developed and manufactured by Adopting international advanced technology.
XM1-PV series Moulded Case Circuit Breaker is designed to distribute power and protect the circuit and power equipment against overload in solar system. It is apply to rating current 1250A or less,direct current rating voltage 1500V or less.Products according IEC60947-2, GB14048.2 standard
| Model | XM1-PV-125 | XM1-PV-250 | XM1-PV-400 | XM1-PV-630 | XM1-PV-800 | XM1-PV-1250 | |
| Rated Current ln (A) |
16, 20, 25, 32, 40, 50, 63, 80, 100, 125 |
100, 125, 140, 160, 180, 200, 225, 250 |
250, 315, 350, 400 |
400, 500, 630 |
630, 700, 800 |
800, 1000, 1250 |
|
| Rated Operating Voltage Ue (V) DC |
500V, 550V, 750V, 1000V | ||||||
| Rated Insulation Voltage Ui (V) |
1000V | 1000V | 1500V | 1500V | 1500V | 1500V | |
| Uimp (kV) | 8kV | ||||||
| Breaking Capacity (kA) Icu (1cs=75% Icu) |
250V | 35 | 50 | 50 | 50 | 65 | 65 |
| 500V | 25 | 35 | 35 | 35 | 50 | 50 | |
| 750V | 15 | 25 | 25 | 25 | 35 | 35 | |
| 1000V | 10 | 15 | 15 | 15 | 20 | 20 | |
| Mechanical Life |
Times | 7000 | 7000 | 4000 | 4000 | 2500 | 2000 |
| Breaking Times (ms) | 20 | ||||||
