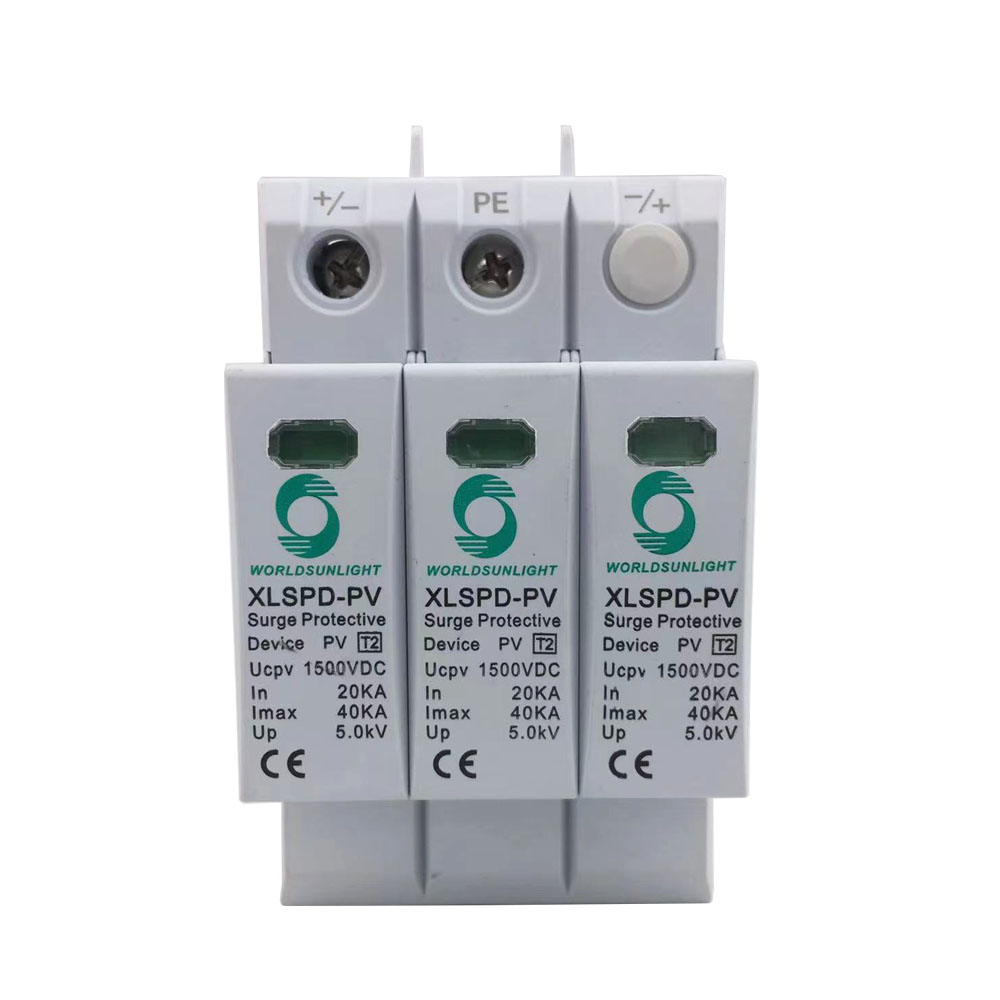

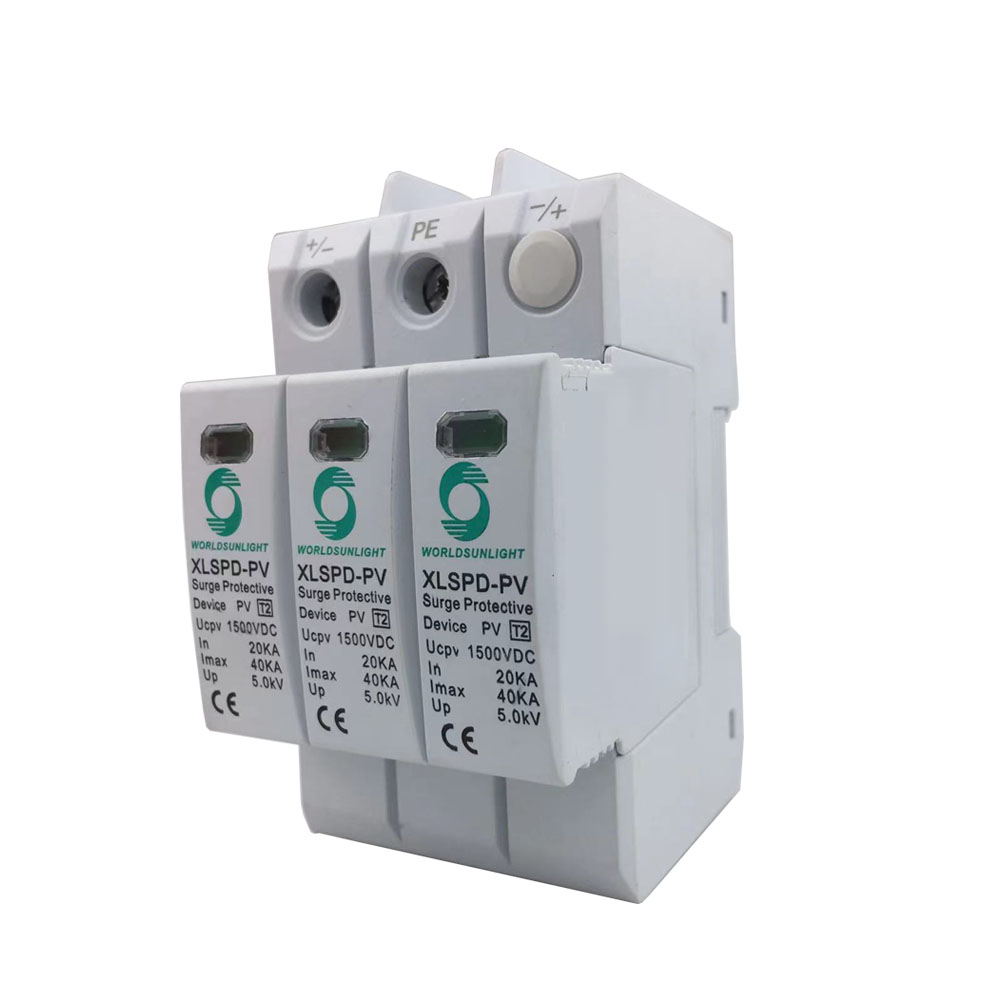

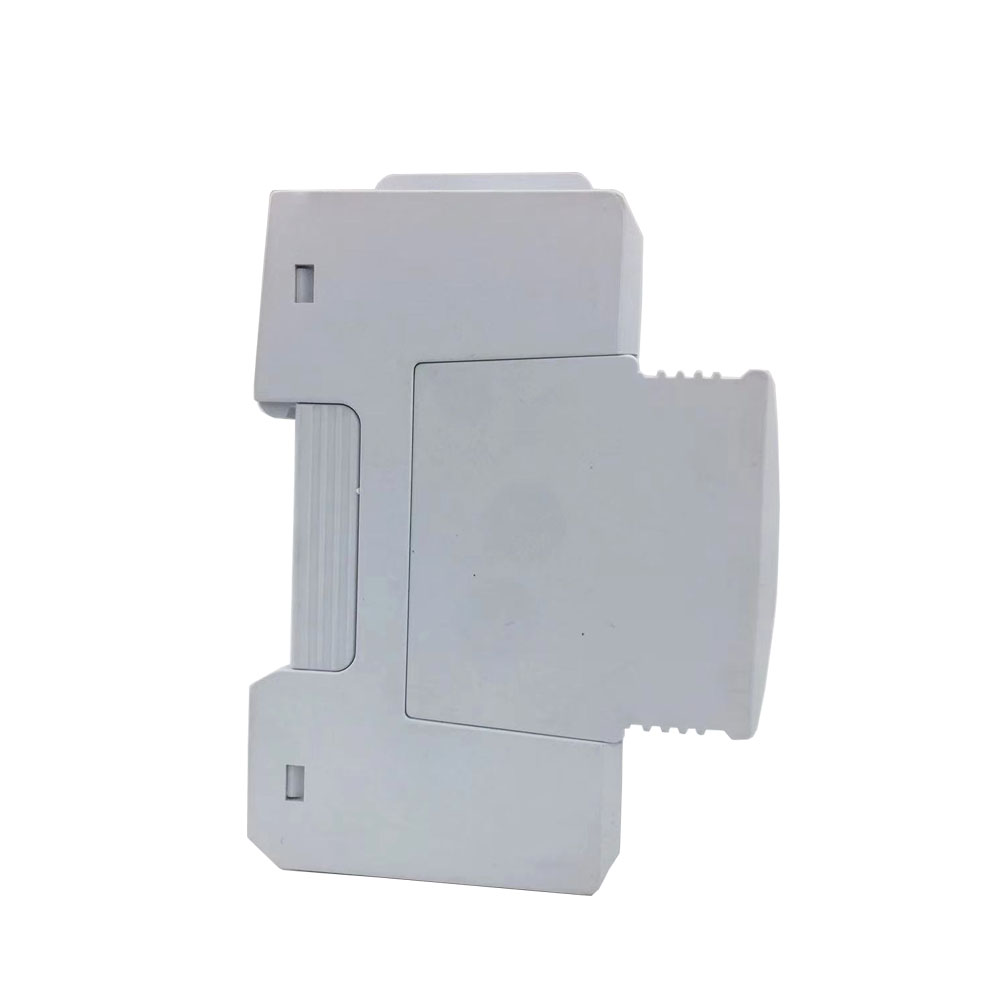

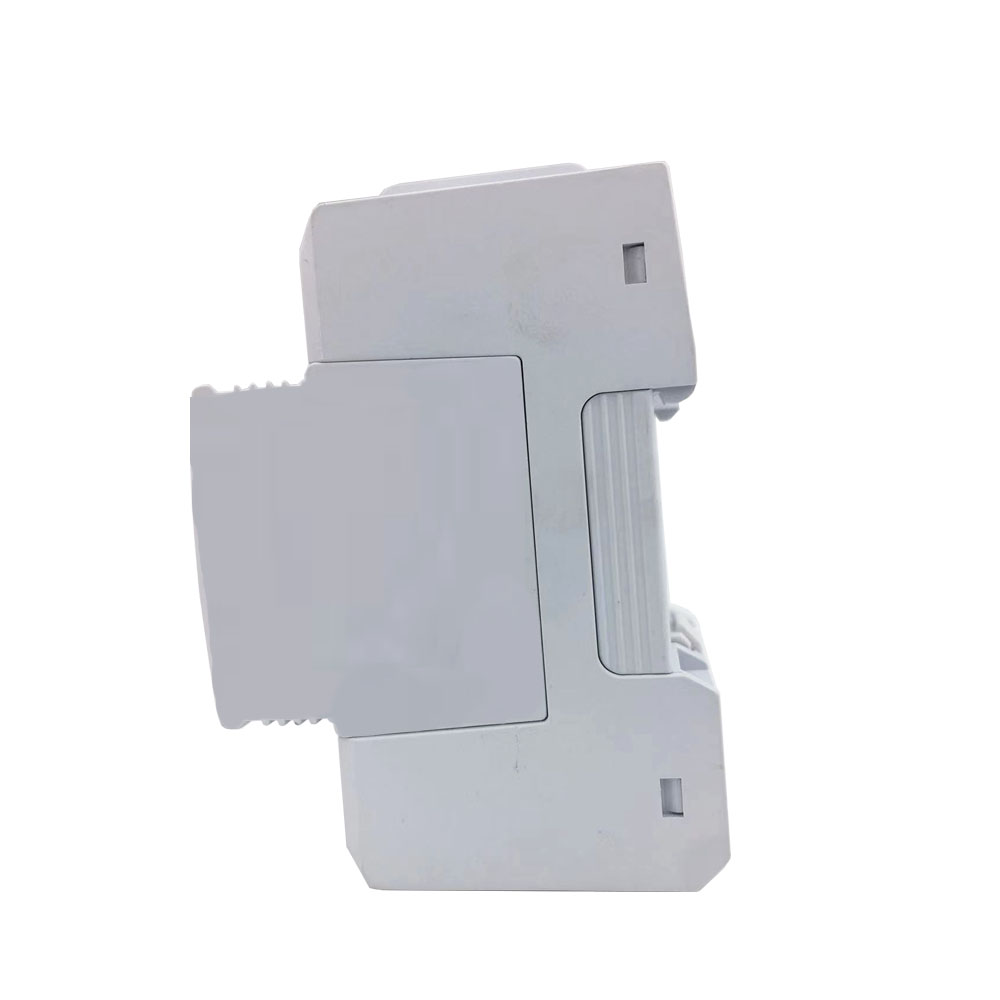

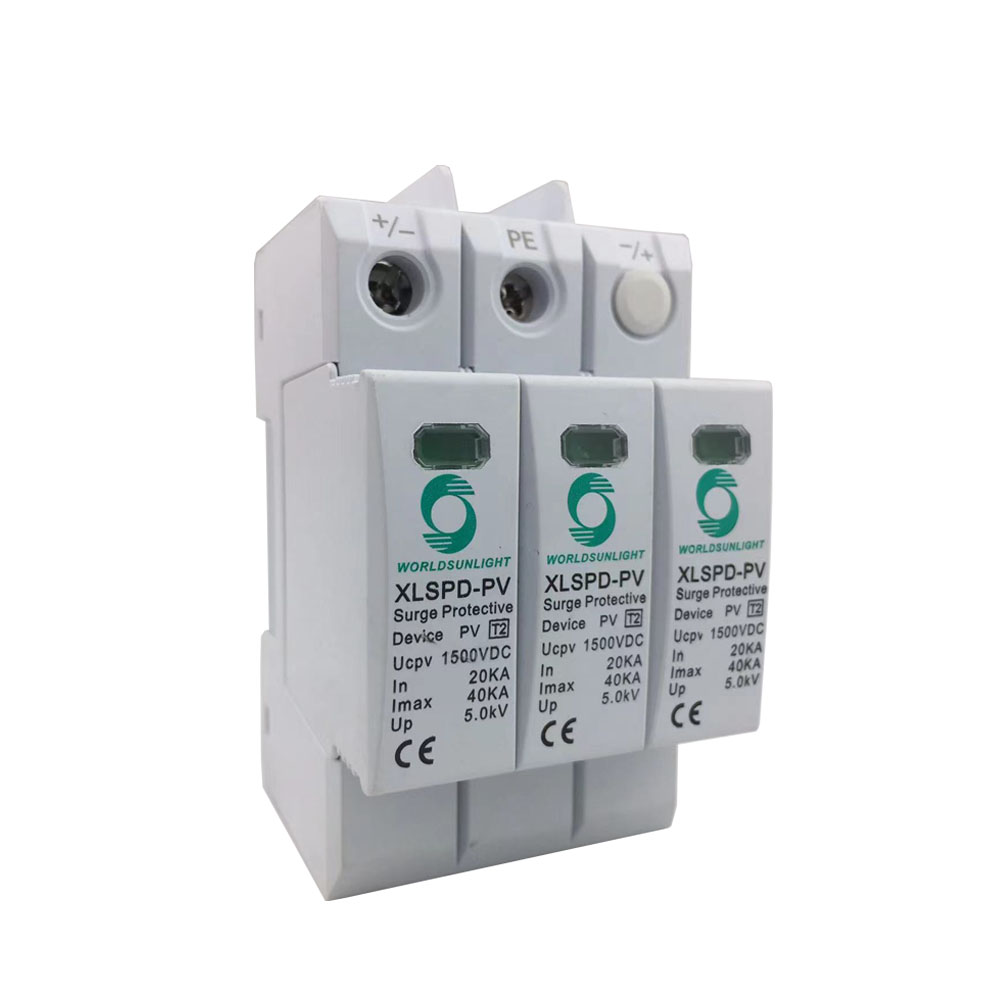

CE TUV XLSPD-PV Solar 3P 1500V surge arrester surge protector protection DPS surge protective device SPD

Item

DC surge protector

Model Number

XLSPD-PV

Pole

3P

Classified test

Ⅱ

Un (V DC)

1500

In(8/20)us (kA)

20

Imax(8/20)us (kA)

40

Item

DC surge protector

Model Number

XLSPD-PV

Pole

3P

Classified test

Ⅱ

Un (V DC)

1500

In(8/20)us (kA)

20

Imax(8/20)us (kA)

40

Up (kV)

5.0

Hard wiring capacity(mm²)

4~25

Flexible wiring capacity(mm²)

4~16

Stripping length(mm)

10

Terminal screwa

MS

Protection class

IP40

Installation environment

No obvious shock and vibration

Altitude (m)

≤ 2000

Working Temperature

-3.0~+70

Relative humidity

30%~90%

How to Install

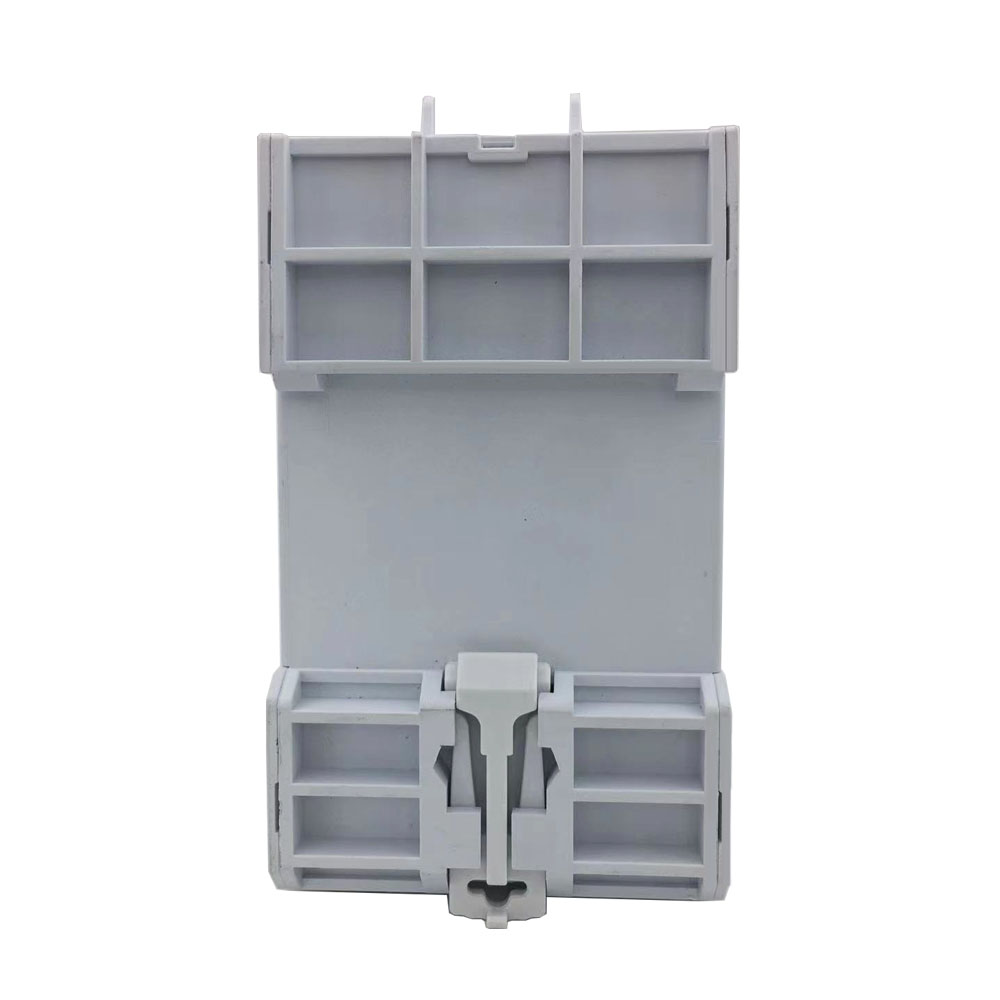

Installed with H35-7.5/DIN35 steel mounting rail
