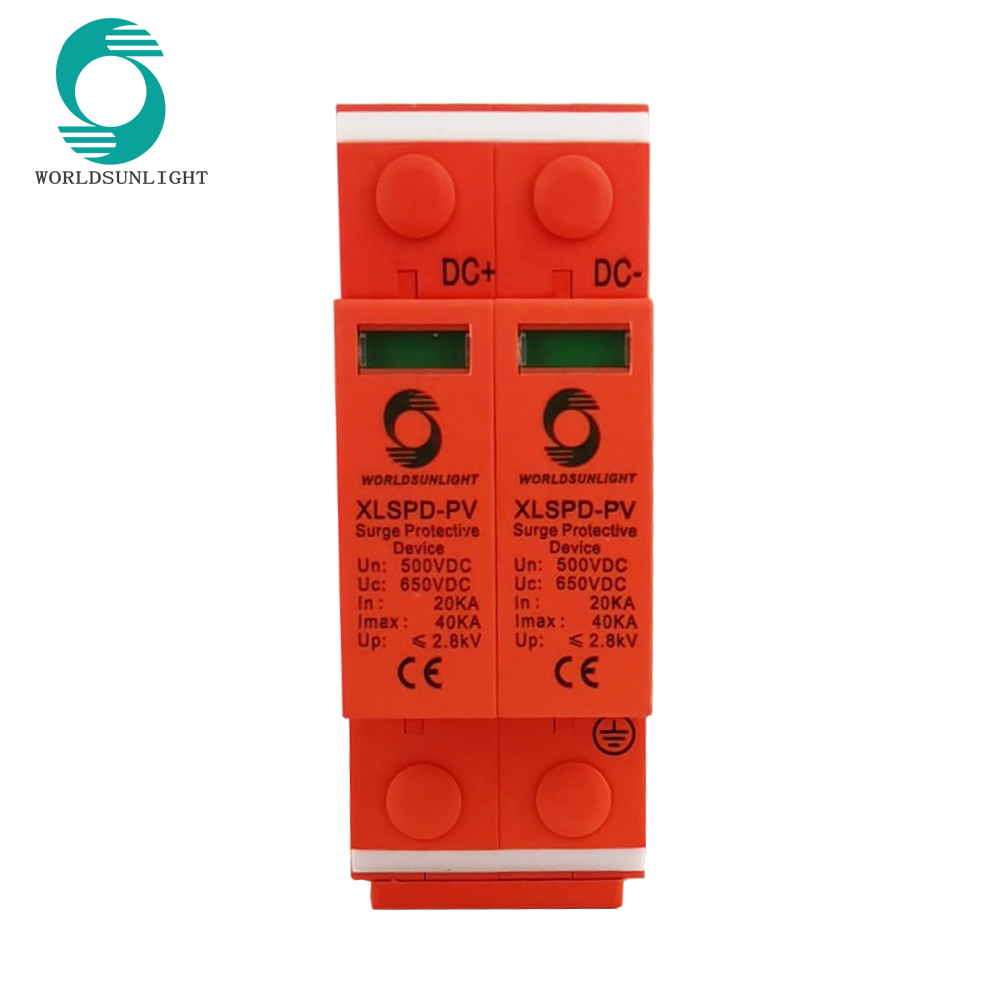

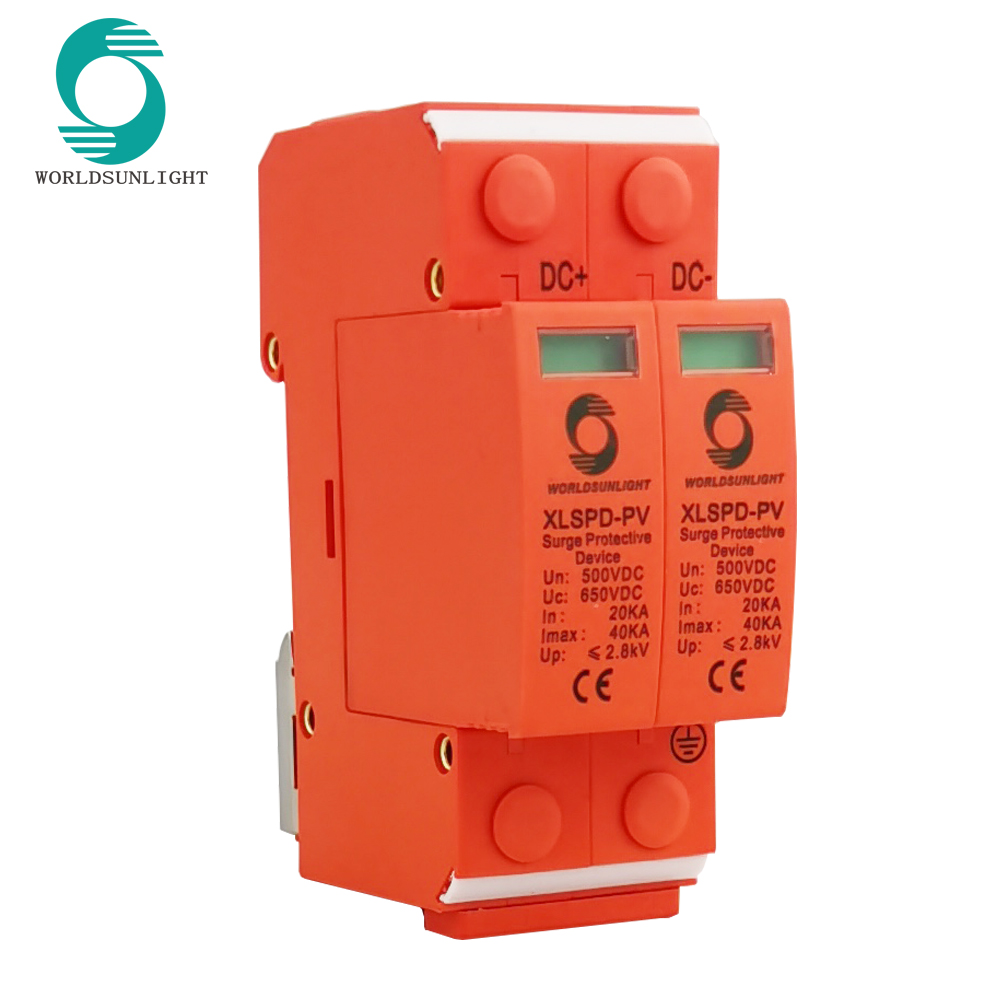

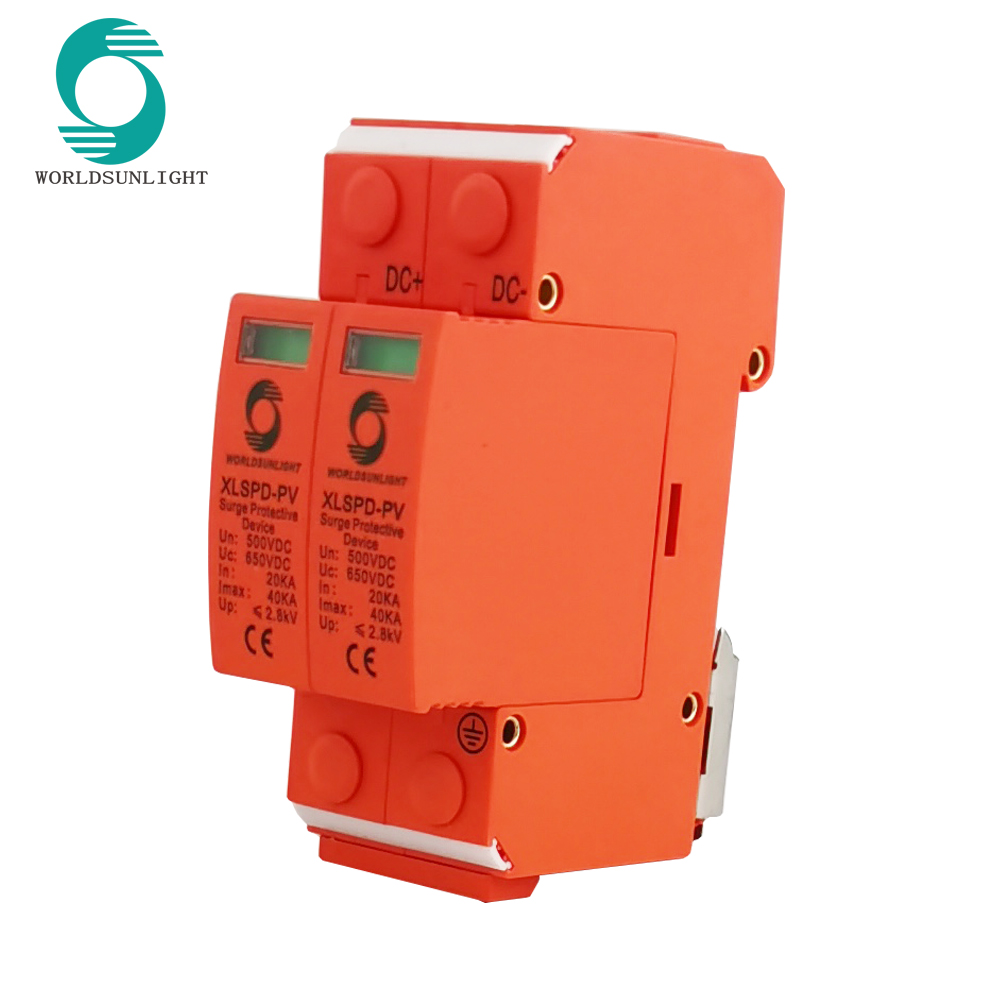

2P 500V DC SPD
|
Item |
DC surge protector |
|
Model Number |
XLSPD-PV |
|
Pole |
2P |
|
Classified test |
Ⅱ |
|
Un (V DC) |
500 |
|
In(8/20)us (kA) |
20 |
|
Imax(8/20)us (kA) |
40 |
DC SPD Specification:
|
Item
|
DC surge protector
|
|
Model Number
|
XLSPD-PV
|
|
Pole
|
2P
|
|
Classified test
|
Ⅱ
|
|
Un (V DC)
|
500
|
|
Uc (V DC)
|
650
|
|
In(8/20)us (kA)
|
20
|
|
Imax(8/20)us (kA)
|
40
|
|
Up (kV)
|
3.8
|
|
Hard wiring capacity(mm²)
|
4~25
|
|
Flexible wiring capacity(mm²)
|
4~16
|
|
Stripping length(mm)
|
10
|
|
Terminal screwa
|
MS
|
|
Protection class
|
IP40
|
|
Installation environment
|
No obvious shock and vibration
|
|
Altitude (m)
|
≤ 2000
|
|
Working Temperature
|
-3.0~+70
|
|
Relative humidity
|
30%~90%
|
|
How to Install
|
Installed with H35-7.5/DIN35 steel mounting rail
|
