WSSCC-4 30A 40A 60A 80A 100A Auto 12/24V Solar Panel Battery Regulator Charge Controller Dual USB 5V Output MPPT Solar Charge Controller

Product Name: LCD solar controller

Material: ROHS+ABS

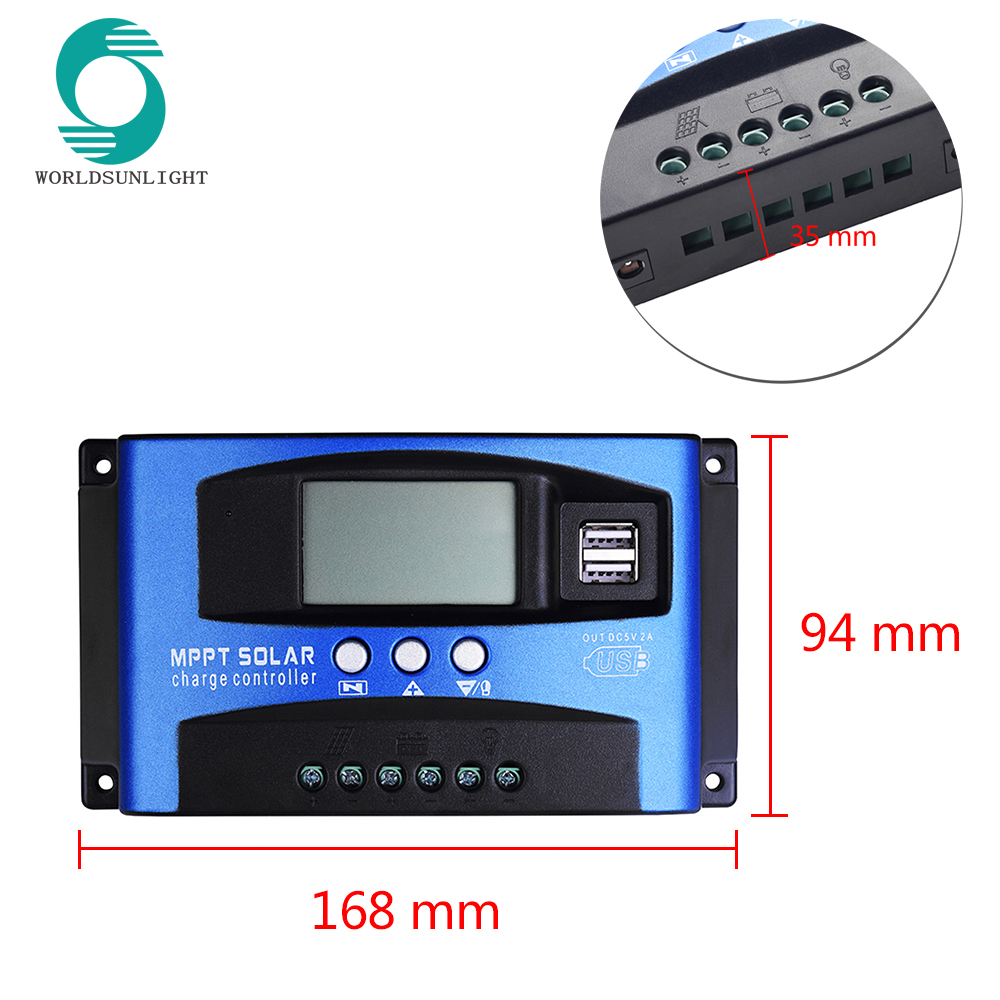

Size: about 168*94*35mm/6.61*3.70*1.38in

Model: WSSCC-4

System voltage: 12 / 24V adaptive

Rated charging current: 30a | 40a | 50a| 60a | 100a

Rated discharge current: 10a | 20a | 20a | 30a | 30a

Solar photovoltaic voltage :12V battery with 18V solar panel, 24V battery with 36 solar panel

Full Voltage Value : Lithium Battery (12.2V) | B02 Colloidal Battery (14.2V) | B03 Open Cell (14.6V)

Floating Charge Voltage : 13.7 V ( Default, Adjustable )

Discharge cut-off voltage::10.7 V ( default, adjustable )

Discharge recovery voltage: 12.6 V ( default, adjustable )

Standby current :10mA

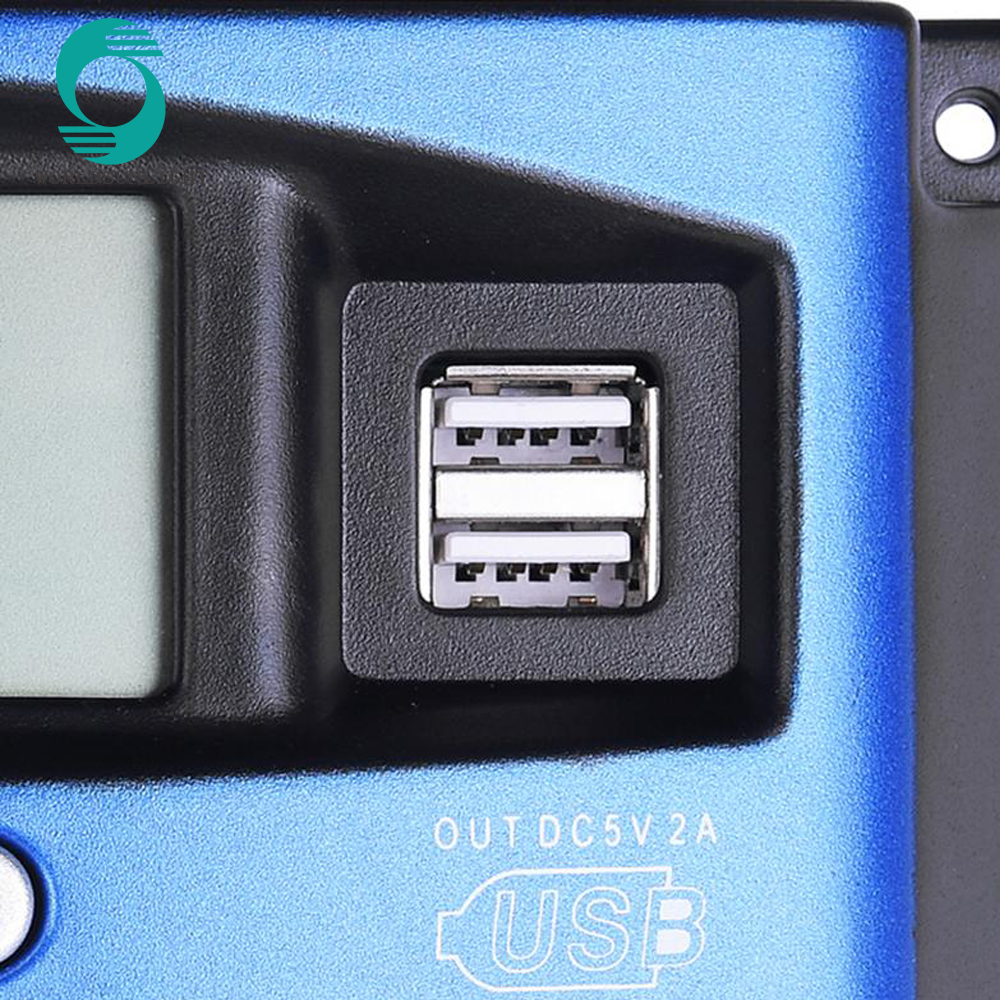

USB Output : 5V / 2A MAX

Operating temperature:- 35 - 60
