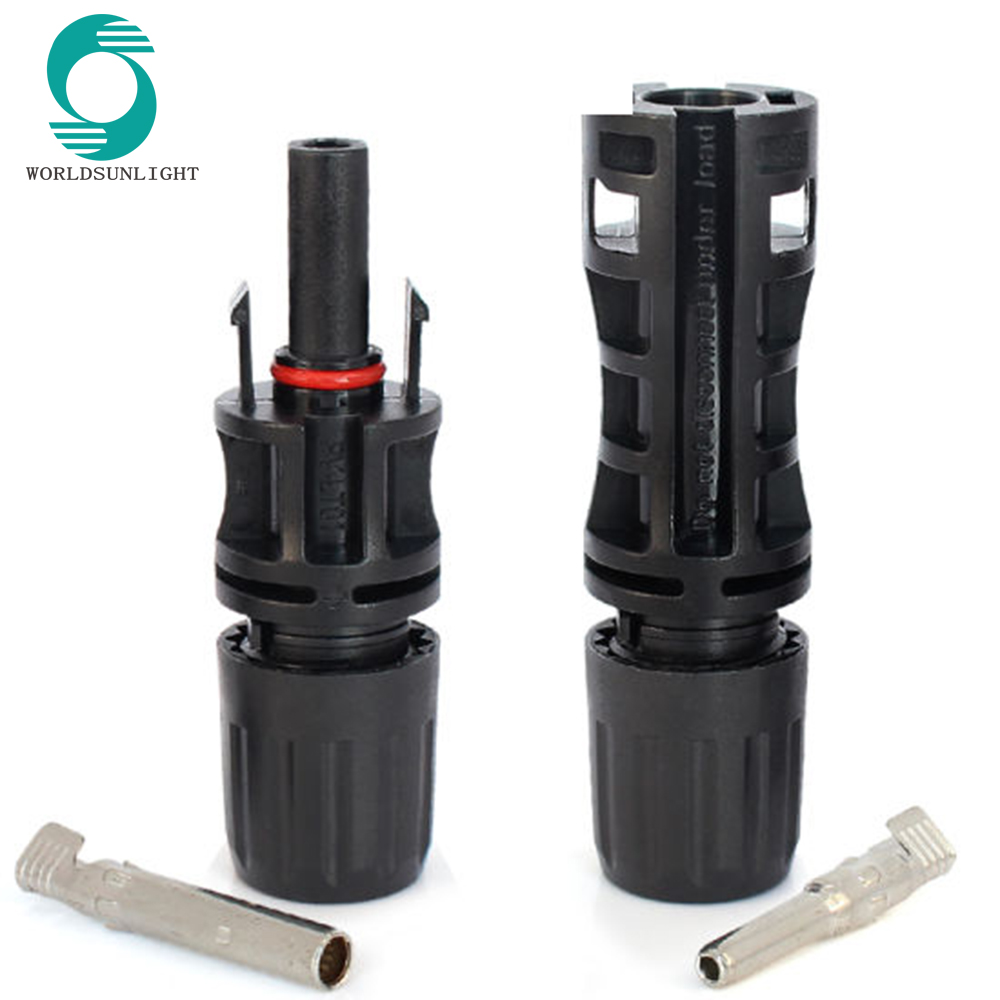

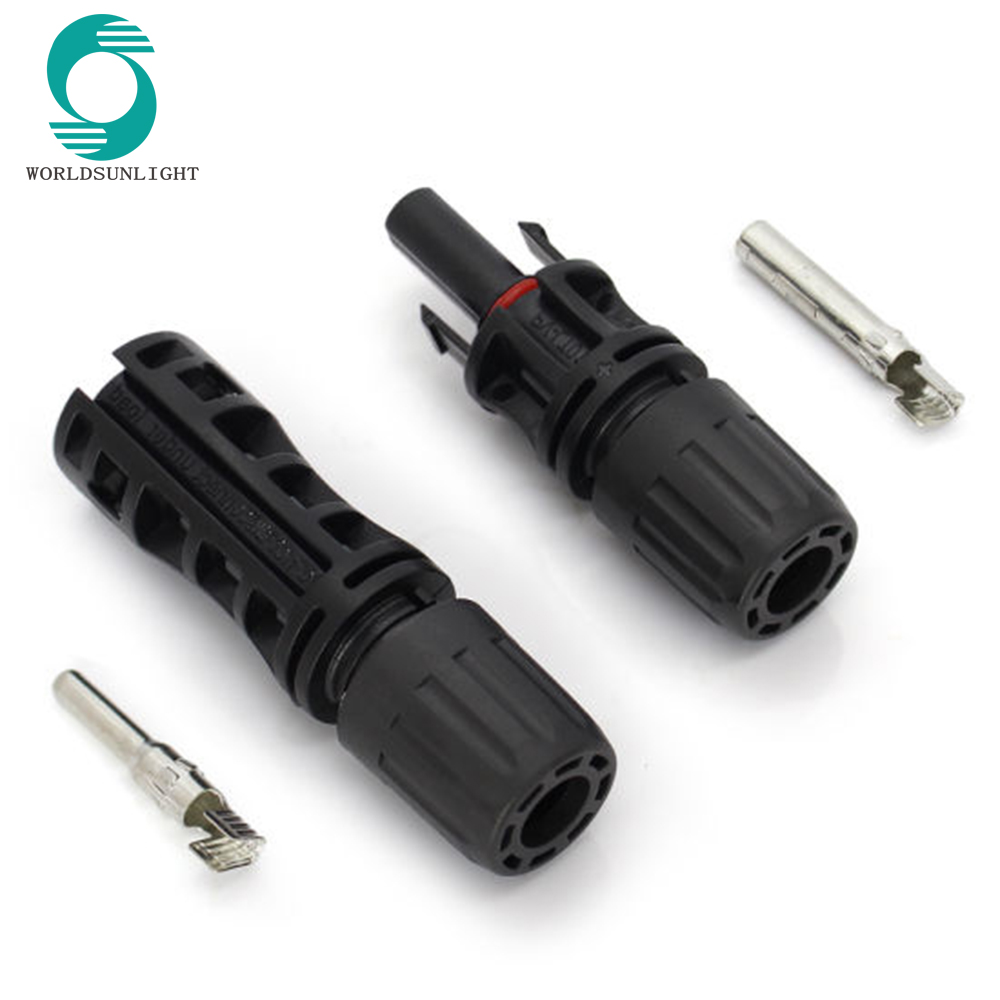

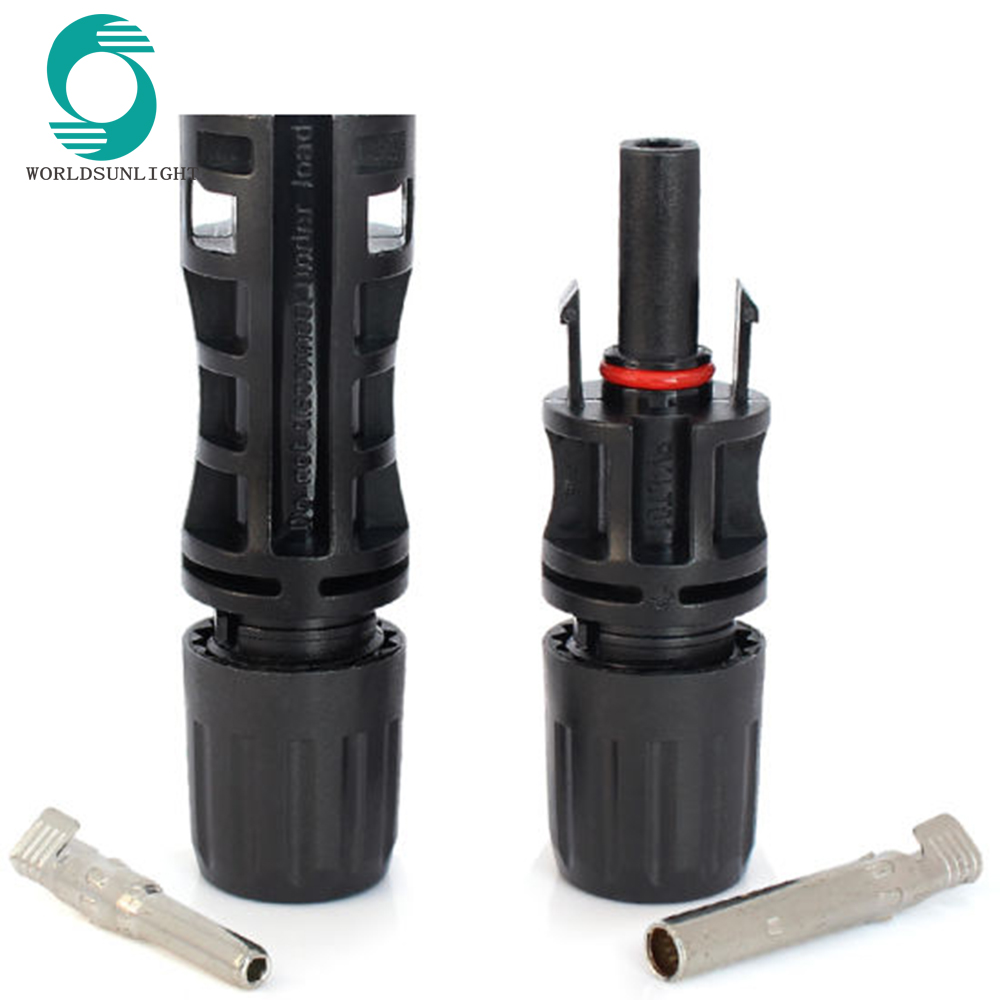

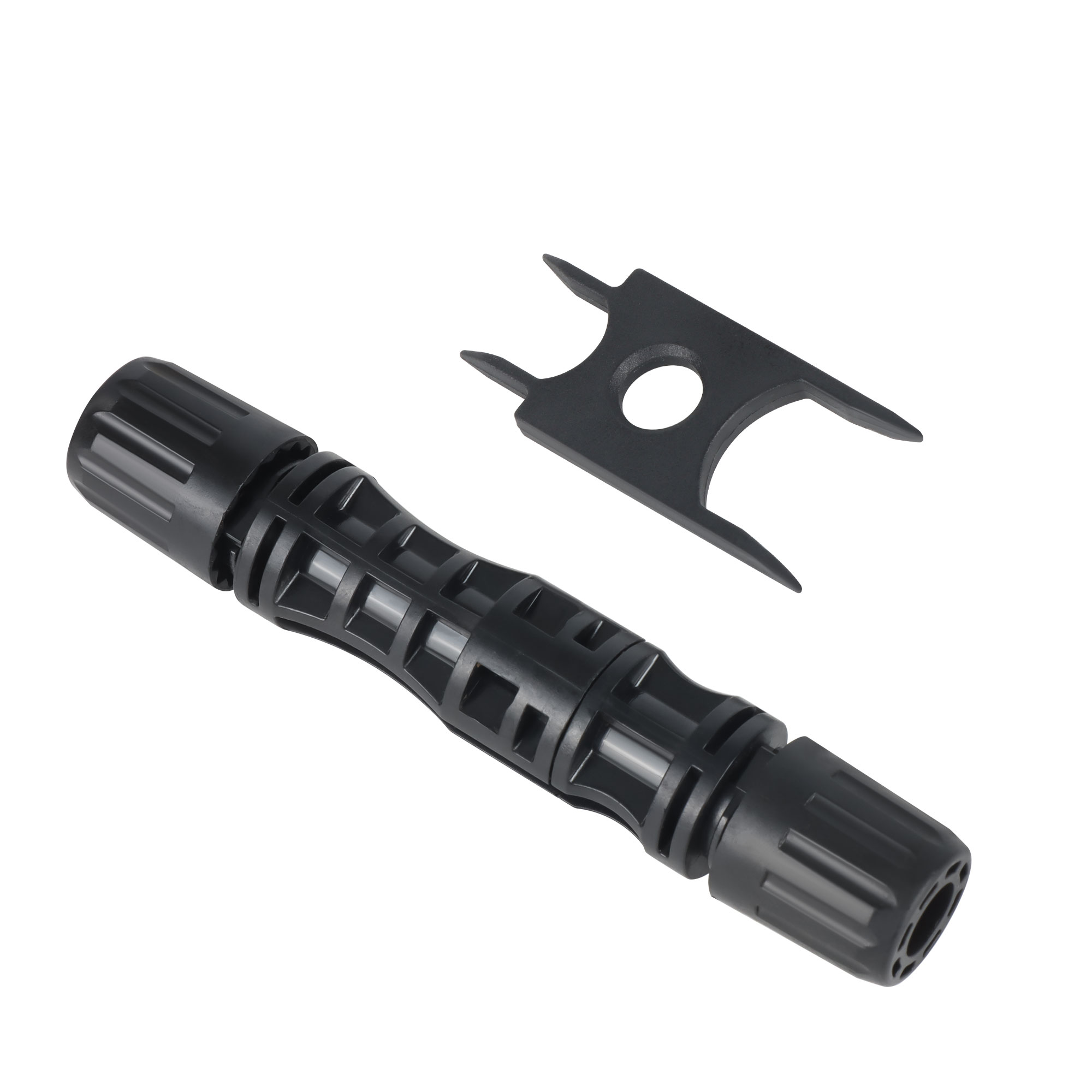

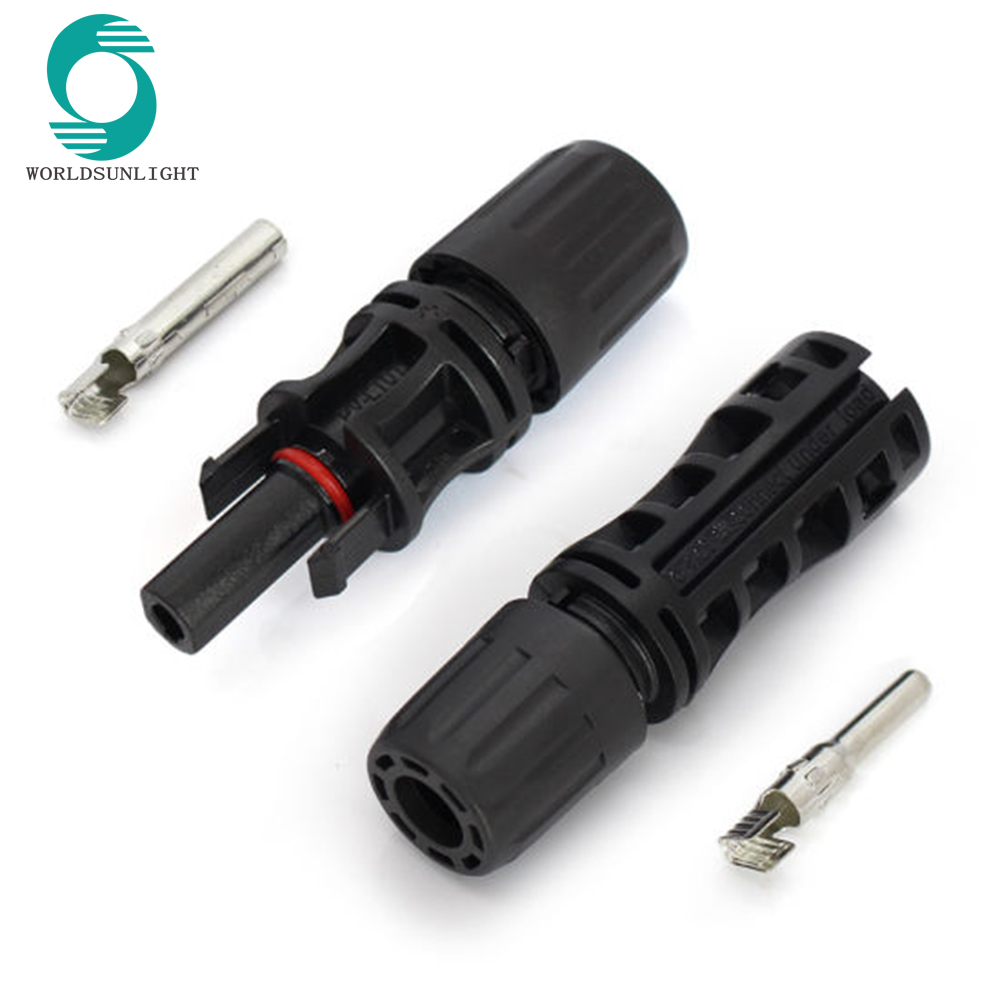

WSPVCC-1500 DC 1500V Solar Cable Connector
1500V MC4 Solar Connector
1.Simple on-site processing.
2.Accommodating PV cable with different insulation diameters.
3.Mating safety provided by keyed housings.
4.Multiple plugging and unplugging cycles .
5.High current carrying capacity.
6.Protection class IP67 suitable for outdoor harsh environments
7.Voltage up to 1500V
Used for 1500V Solar Power System
|
Item |
SOLAR CONNECTOR |
|
Model Number |
WSPVPC |
|
Rated Current |
30A(2.5-6mm2),60A(10-16mm2) |
|
Test Voltage |
1500VDC |
|
Overvoltage Type/Pollution Degree |
6000V(50Hz, 1min) |
|
Contact Resistance Of Plug Connector |
CAT III /2 |
|
Contact Resistance Of Plug Connector |
ImΩ |
|
Contact Material |
Copper, Tin-plated |
|
Insulation Material |
PPO |
|
Degree Of Protection |
IP2X/IP67 |
|
Flame Class |
UL94-VO |
|
Safety Class |
II |
|
Suitable Cable |
OD 4.5-8.5(2.5-6.0mm2) |
|
Insertion Force/Withdrawal Force |
≤ 50N/ ≥ 50N |
|
Connecting System |
Crimp connection |
|
Temperature Range |
-40℃ ~ +125℃ |
