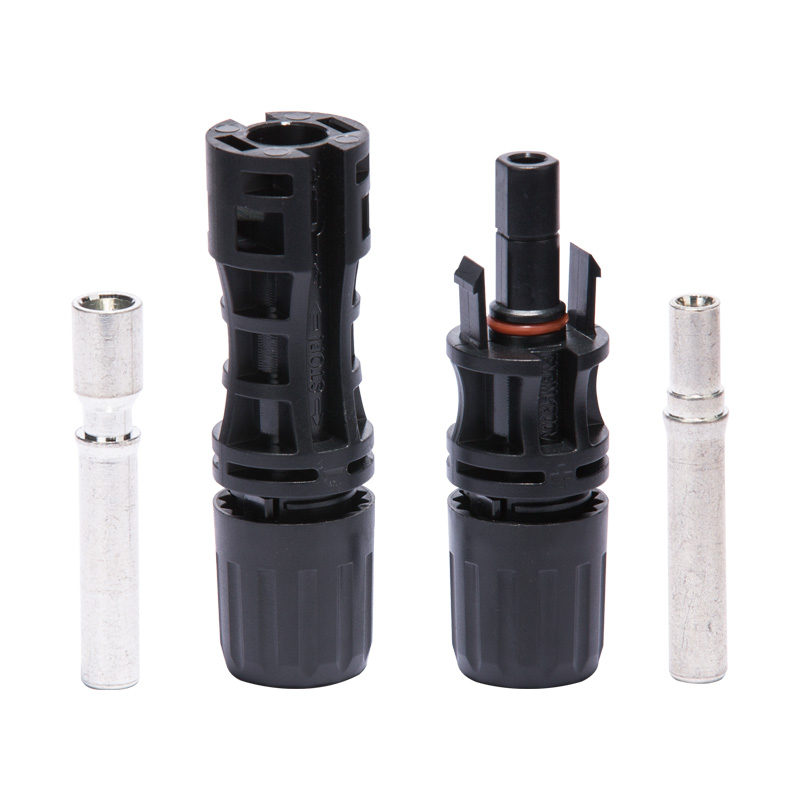

WSPVPC-1500V male & female DC 1500V Solar panel connector
1500V MC4 Solar Connector
1.Simple on-site processing.
2.Accommodating PV cable with different insulation diameters.
3.Mating safety provided by keyed housings.
4.Multiple plugging and unplugging cycles .
5.High current carrying capacity.
6.Protection class IP67 suitable for outdoor harsh environments
7.Voltage up to 1500V
Used for 1500V Solar Power System
|
Item
|
SOLAR CONNECTOR
|
|
Model Number
|
WSPVCC-1500V
|
|
Rated Current
|
40A(4-6mm2)
|
|
Test Voltage
|
1500VDC
|
|
Overvoltage Type/Pollution Degree
|
6000V(50Hz, 1min)
|
|
Contact Resistance Of Plug Connector
|
CAT III /2
|
|
Contact Resistance Of Plug Connector
|
ImΩ
|
|
Contact Material
|
Copper, Tin-plated
|
|
Insulation Material
|
PC
|
|
Degree Of Protection
|
IP2X/IP67
|
|
Flame Class
|
UL94-VO
|
|
Safety Class
|
II
|
|
Suitable Cable
|
OD 4.5-8.5(2.5-6.0mm2)
|
|
Insertion Force/Withdrawal Force
|
≤ 50N/ ≥ 50N
|
|
Connecting System
|
Crimp connection
|
|
Temperature Range
|
-40℃ ~ +125℃
|
