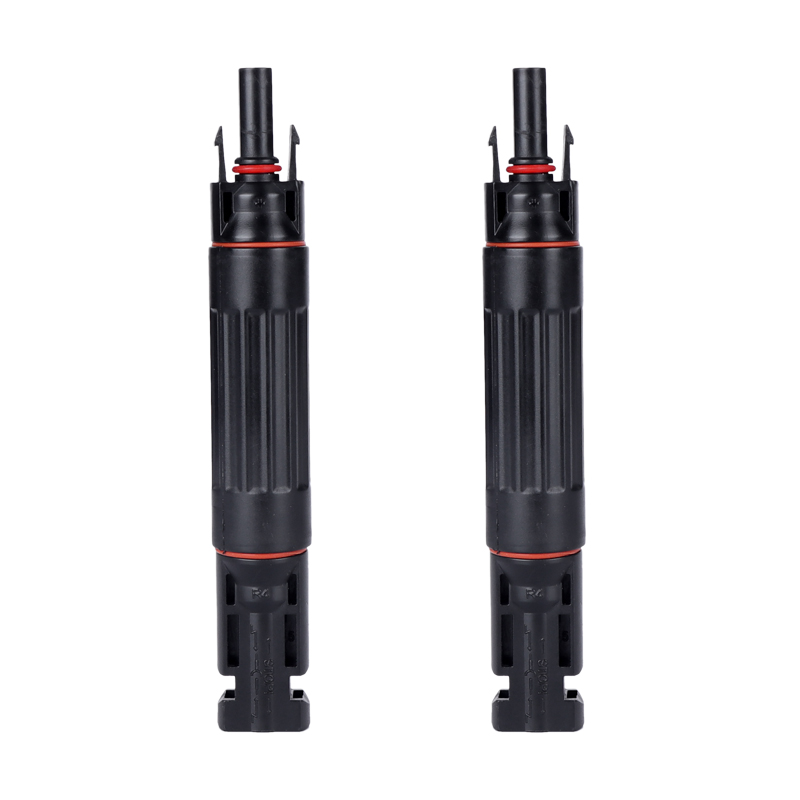

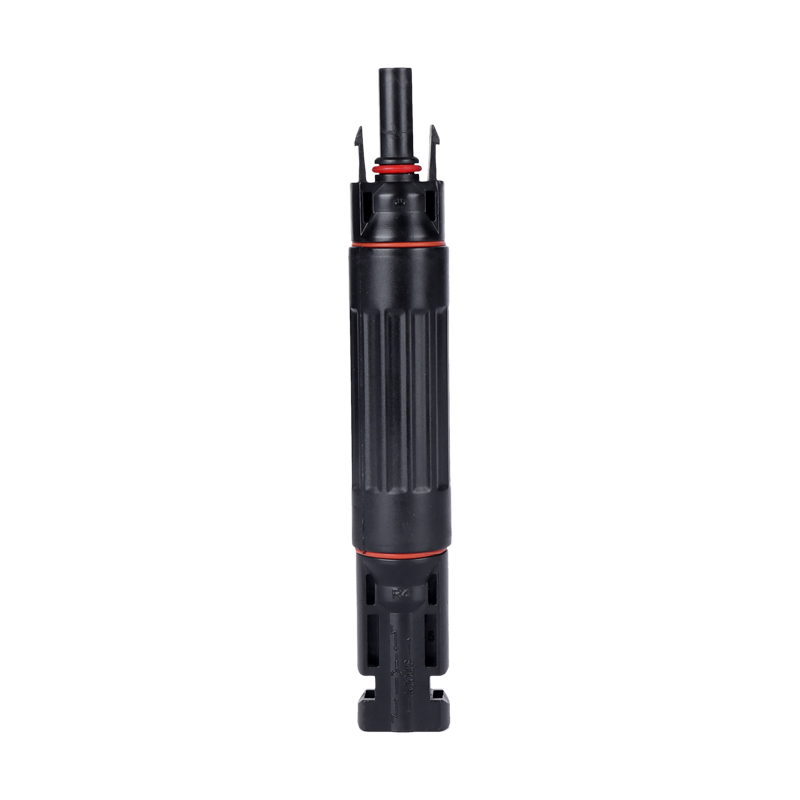

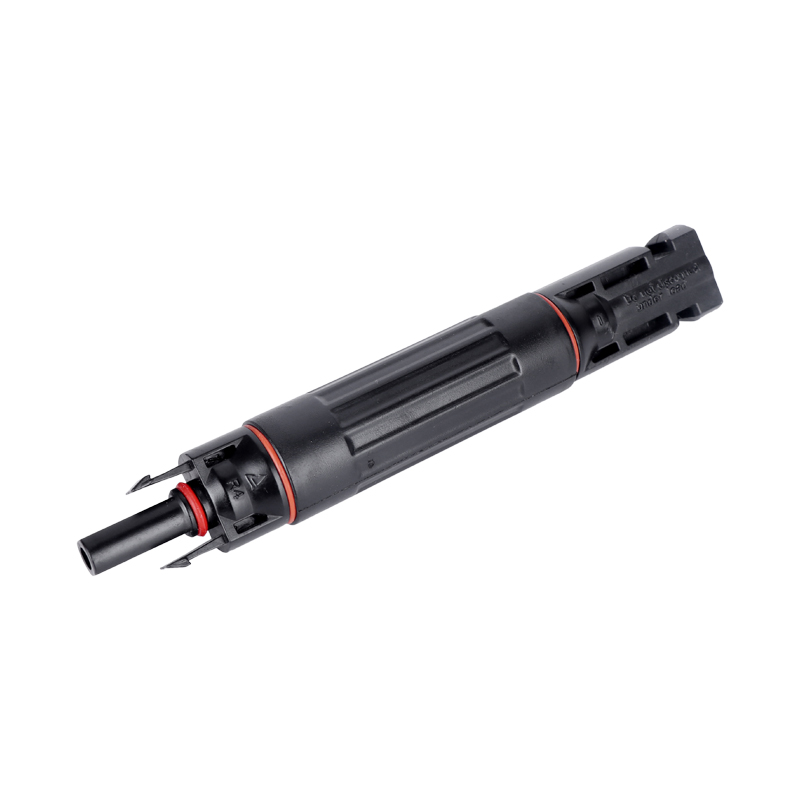

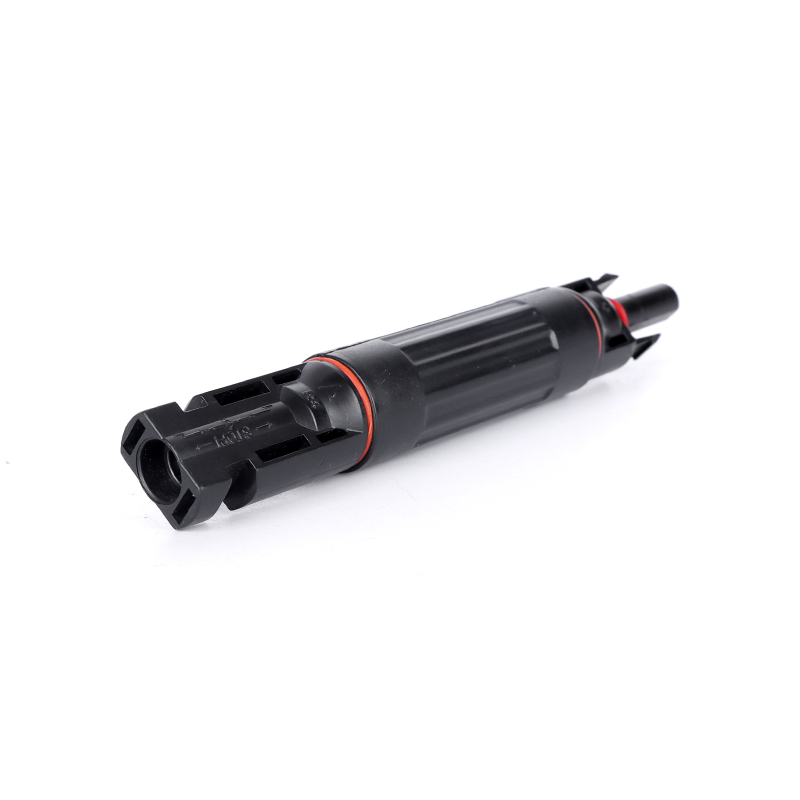

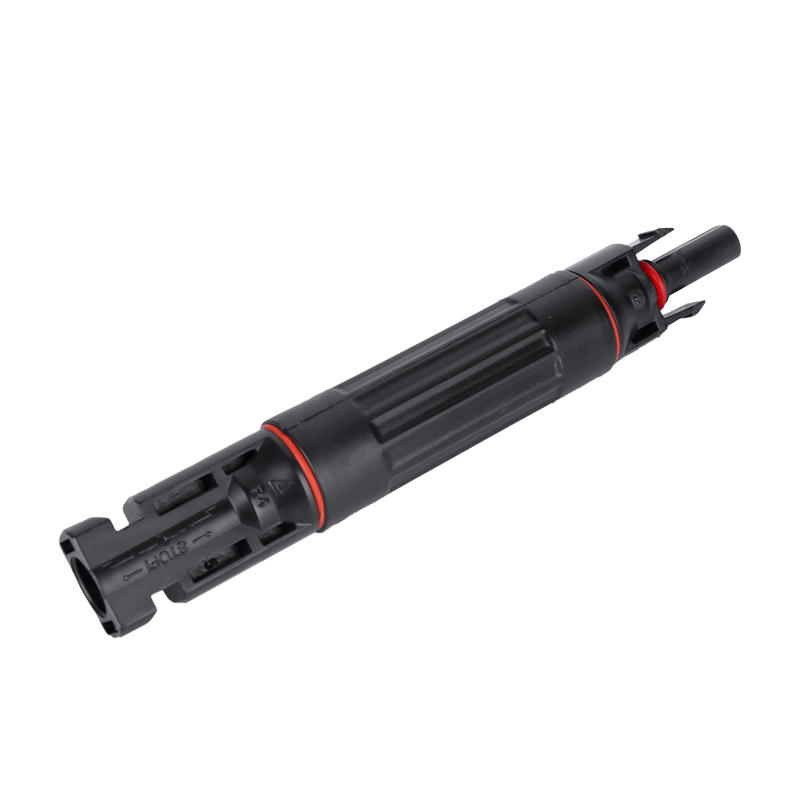

WSPVFC with 10A 12A 15A 20A 25A 30A 32A inline fuse waterproof IP67 DC PV solar connector for solar PV system
WSPVFC with 10A 12A 15A 20A 25A 30A 32A inline fuse waterproof IP67 DC PV solar connector for solar PV system
WSPVFC with 10A 12A 15A 20A 25A 30A 32A inline fuse waterproof IP67 DC PV solar connector for solar PV system
WSPVFC with 10A 12A 15A 20A 25A 30A 32A inline fuse waterproof IP67 DC PV solar connector for solar PV system
WSPVFC with 10A 12A 15A 20A 25A 30A 32A inline fuse waterproof IP67 DC PV solar connector for solar PV system
WSPVFC with 10A 12A 15A 20A 25A 30A 32A inline fuse waterproof IP67 DC PV solar connector for solar PV system

WSPVFC with 10A 12A 15A 20A 25A 30A 32A inline fuse waterproof IP67 DC PV solar connector for solar PV system

WSPVFC 10A 12A 15A 20A 25A 30A 32A inline fuse Connector

Information
China Xianglang
E-mail
China Xianglang
China Xianglang
Facebook
China Xianglang
Twitter
China Xianglang
Google+
China Xianglang
Linkedin
China Xianglang
Skype

WSPVFC 10A 12A 15A 20A 25A 30A 32A inline fuse Connector

Simple on-site processing.

Acomodates PV cable with different insulation diameters.

Mating safety provided bykeyed housings.

Multiple plugging and unplugging cycles .

High current carrying capacity.

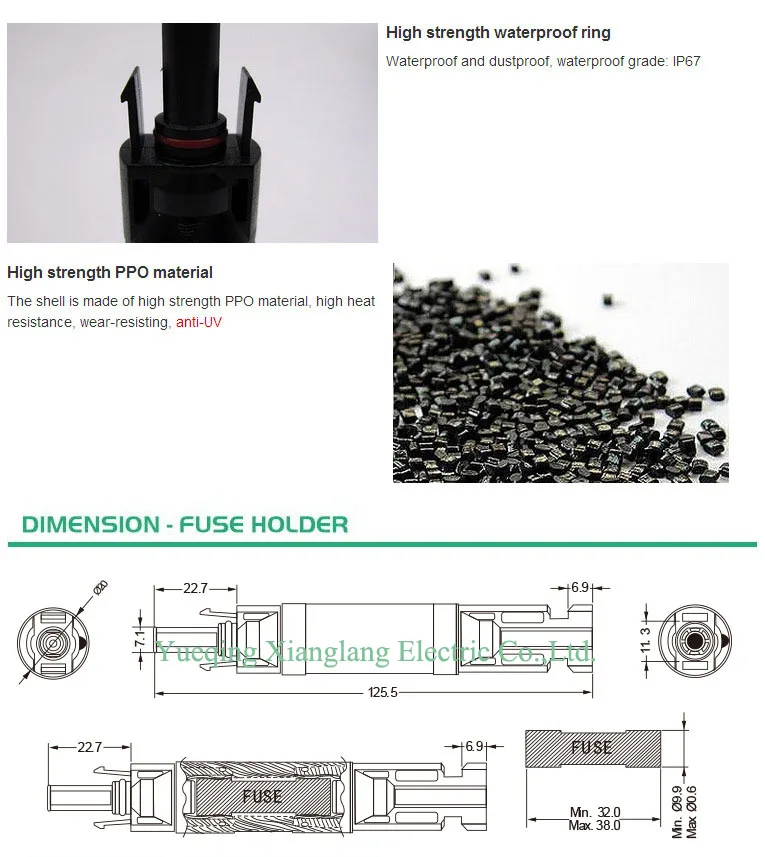

SOLAR CONNECTOR Specification:

Item
 SOLAR CONNECTOR
Model Number
WSPVFC
Rated Current
10A 12A 15A 16A 20A 25A 30A 32A
Test Voltage
1000V DC
Overvoltage Type/Pollution Degree
6000V(50Hz, 1min)
Contact Resistance Of Plug Connector
CAT III /2
Contact Resistance Of Plug Connector
ImΩ
Contact Material
Copper, Tin-plated
Insulation Material
PPO
Degree Of Protection
IP2X/IP67
Flame Class
UL94-VO
Safety Class
II
Suitable Cable
OD 4.5-8.5(2.5-6.0mm2)
Insertion Force/Withdrawal Force
≤ 50N/ ≥ 50N
Connecting System
Crimp connection
Temperature Range
-40℃ ~ +125℃
