Application: Solar energy system,solar light ,Solar panel; Rated current of mc4 T-branch connector: 40A; Rated voltage of mc4 T-branch connector: DC 1000V; Contact material: Copper, silver plated; Insulation material: PPO
Application: Solar energy system,solar light ,Solar panel
Rated current of mc4 T-branch connector: 40A
Rated voltage of mc4 T-branch connector: DC 1000V
Contact material: Copper, silver plated
Insulation material: PPO
Degree protection: IP2*/IP67
Suitable cable cross sections: 2.5/4/6mm sq
Flame class of T-branch connector: UL94-VO&UL94-5VA
Solar Power System

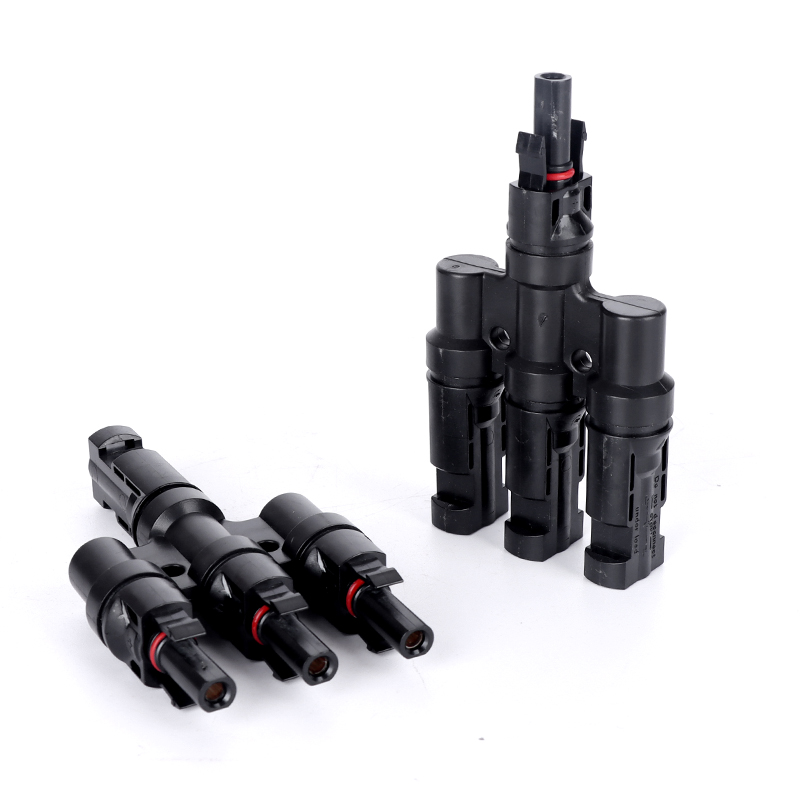

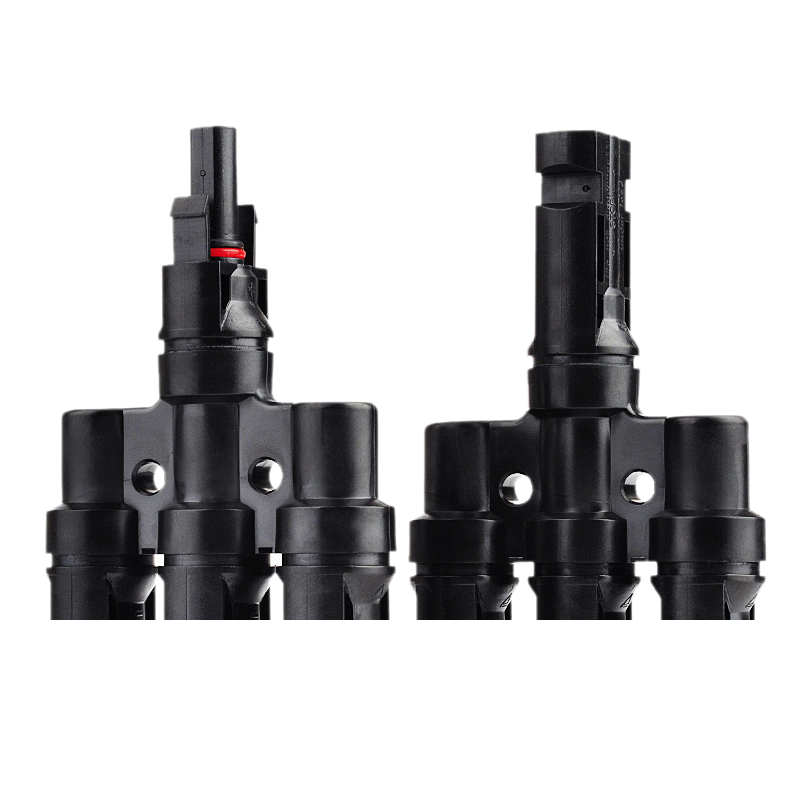

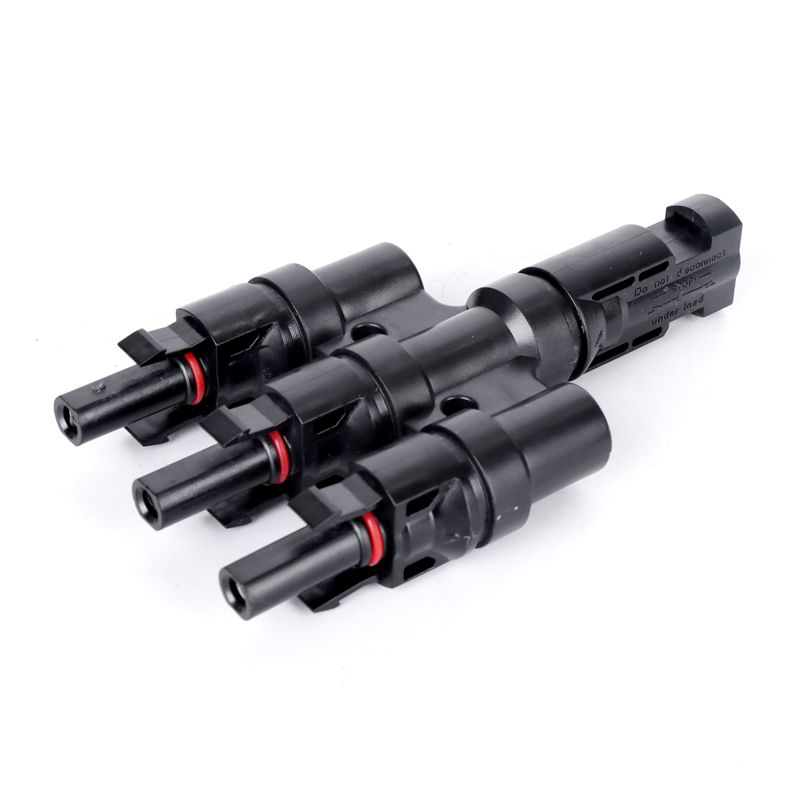

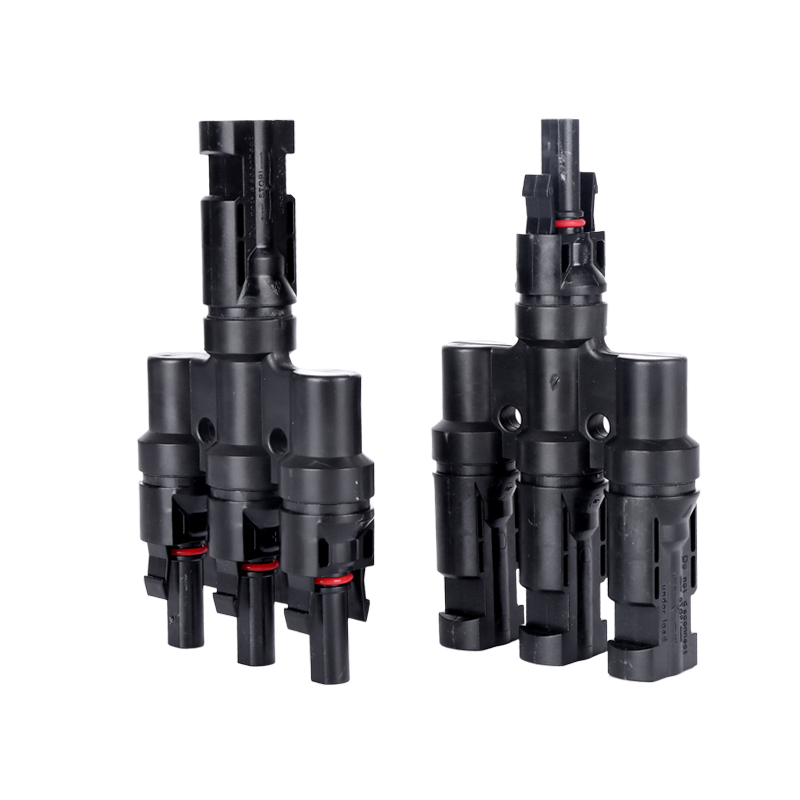

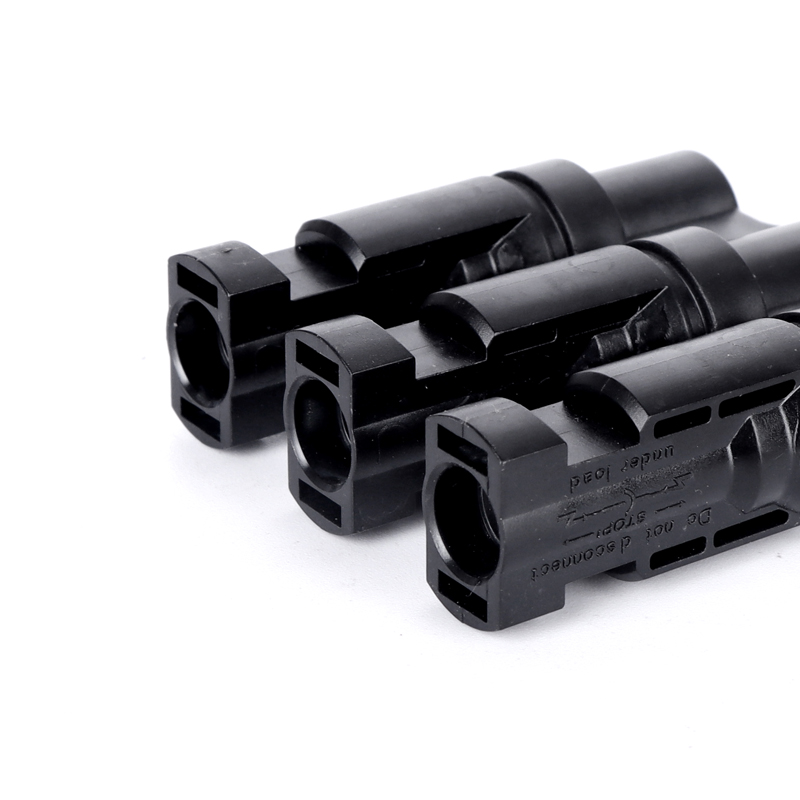

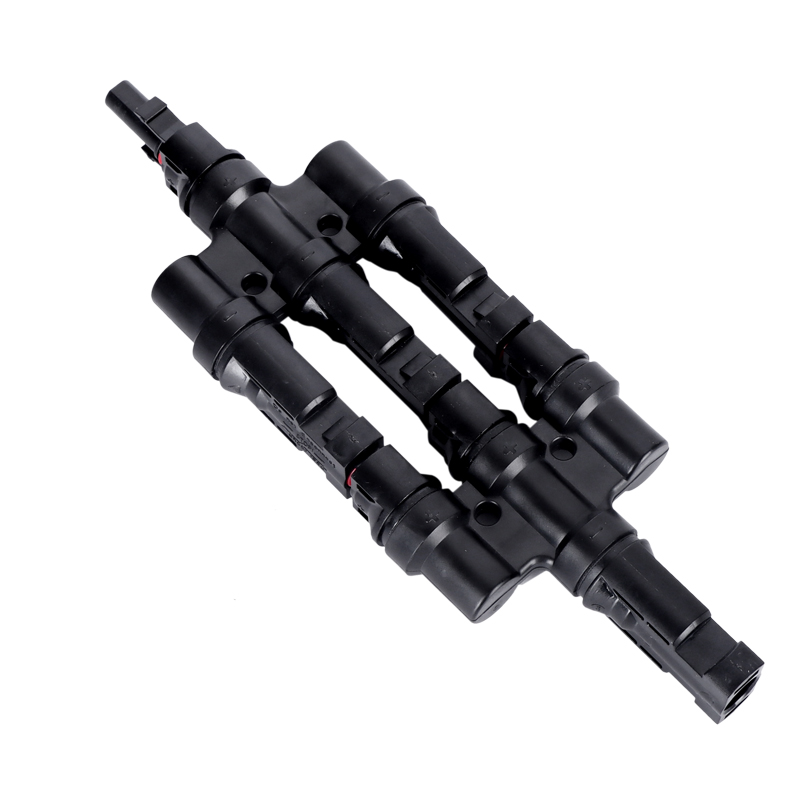

SOLAR CONNECTOR Specification:
|
Item
|
SOLAR CONNECTOR
|
|
Model Number
|
WSPVT3
|
|
Rated Current
|
40A
|
|
Test Voltage
|
1000V DC
|
|
Overvoltage Type/Pollution Degree
|
6000V(50Hz, 1min)
|
|
Contact Resistance Of Plug Connector
|
CAT III /2
|
|
Contact Resistance Of Plug Connector
|
1mΩ
|
|
Contact Material
|
Copper, Tin-plated
|
|
Insulation Material
|
PPO
|
|
Degree Of Protection
|
IP2X/IP67
|
|
Flame Class
|
UL94-VO
|
|
Safety Class
|
II
|
|
Insertion Force/Withdrawal Force
|
≤ 50N/ ≥ 50N
|
|
Connecting System
|
Crimp connection
|
|
Temperature Range
|
-40℃ ~ +125℃
|
