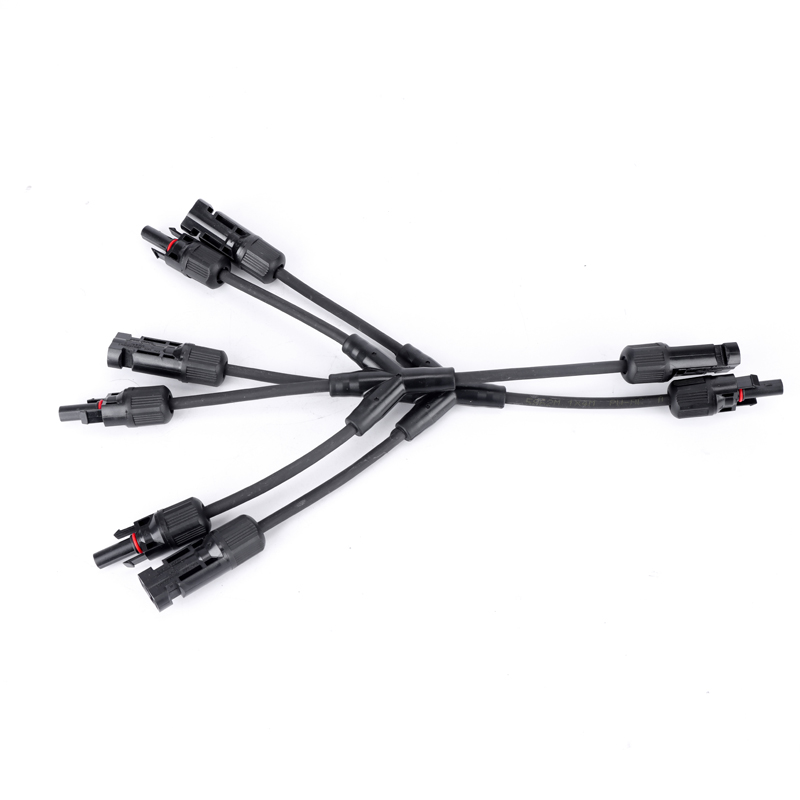

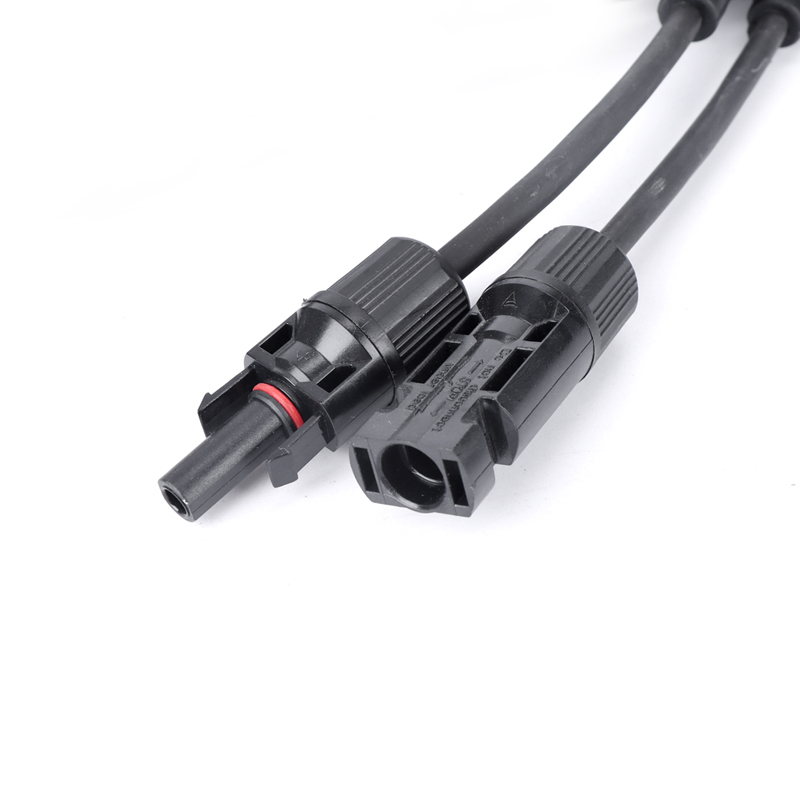

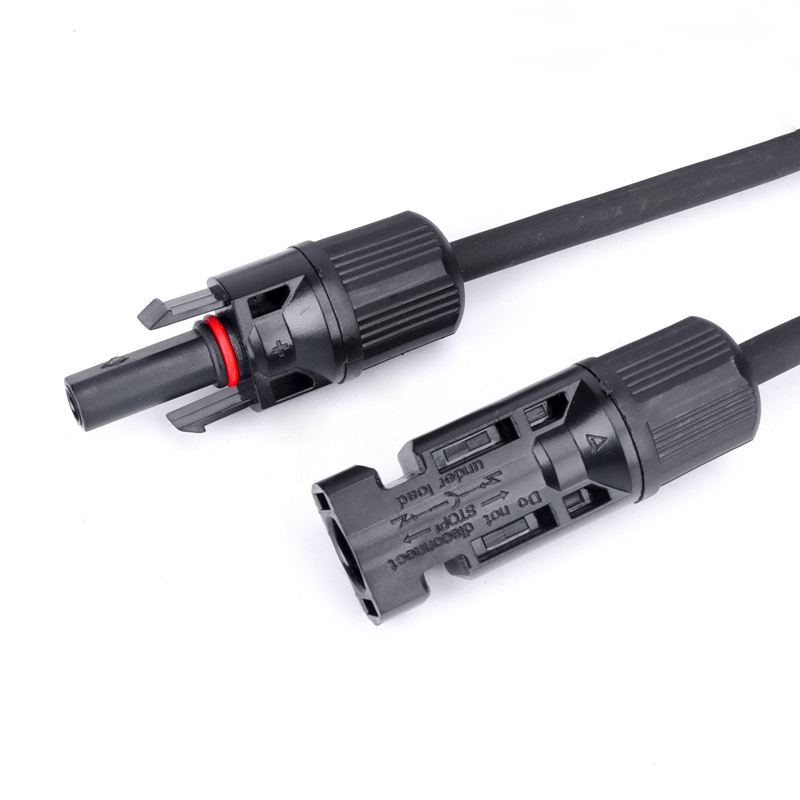

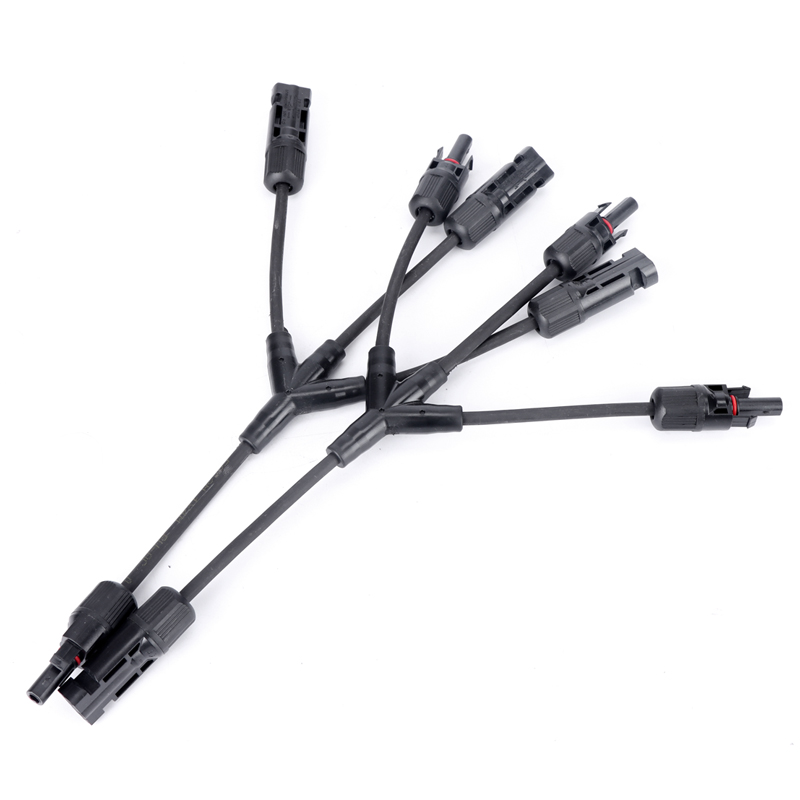

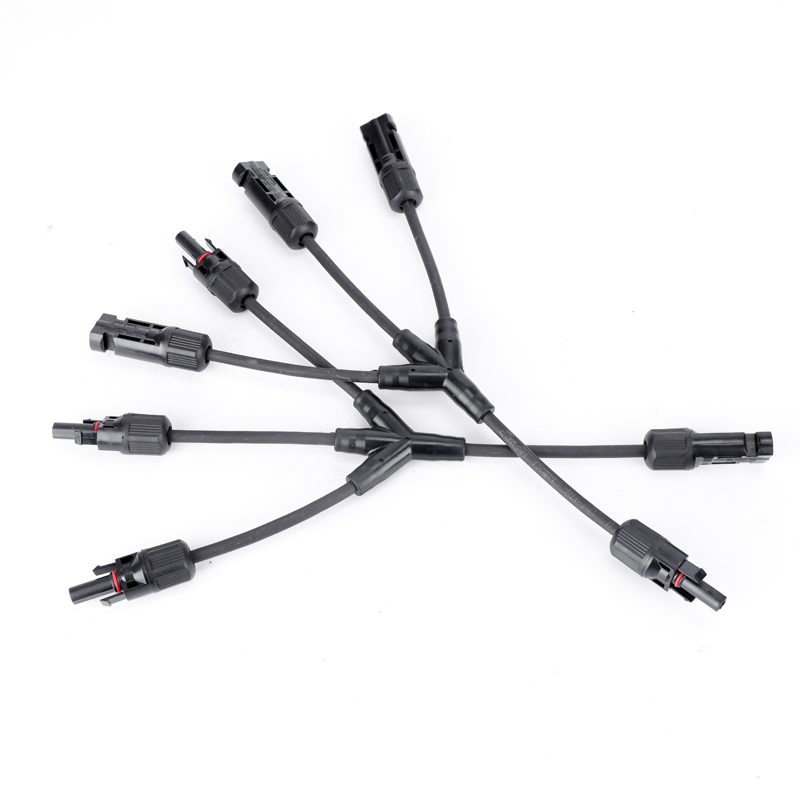

MC4 Y branch connector: 1.CE approved; 2.Degree of protection:IP2*/IP67; 3.Contact material:Copper,silver plated; 4.40A. ·Simple on-site processing. ·Mating safety provided by keyed housings. ·Mutiple plugging and unplugging cycles
MC4 Parallel connector
1.CE approved
2.Degree of protection:IP2*/IP67
3.Contact material:Copper,silver plated
4.40A
·Simple on-site processing
·Mating safety provided by keyed housings
·Mutiple plugging and unplugging cycles
·Accomodates PV cable with deferent insulation diamaters
·High current carrying capacity
. Rated current:up to 40A
·CE approved
·Competive price
Application: Solar energy system,solar light ,Solar panel
SOLAR CONNECTOR Specification:
|
Item
|
SOLAR CONNECTOR
|
|
Model Number
|
WSPVY3
|
|
Test Voltage
|
1000V DC
|
|
Overvoltage Type/Pollution Degree
|
6000V(50Hz, 1min)
|
|
Contact Resistance Of Plug Connector
|
CAT III /2
|
|
Contact Resistance Of Plug Connector
|
≤1mΩ
|
|
Contact Material
|
Copper, Tin-plated
|
|
Insulation Material
|
PPO
|
|
Degree Of Protection
|
IP2X/IP67
|
|
Flame Class
|
UL94-VO
|
|
Safety Class
|
II
|
|
Insertion Force/Withdrawal Force
|
≤ 50N/ ≥ 50N
|
|
Cable Size
|
4mm2 solar cable for regular orders/ If you need 6mm2 solar cable,we could customize.MOQ 500 pairs
|
|
Temperature Range
|
-40℃ ~ +125℃
|
